PM DRUNTER FIX

Concrete spacer

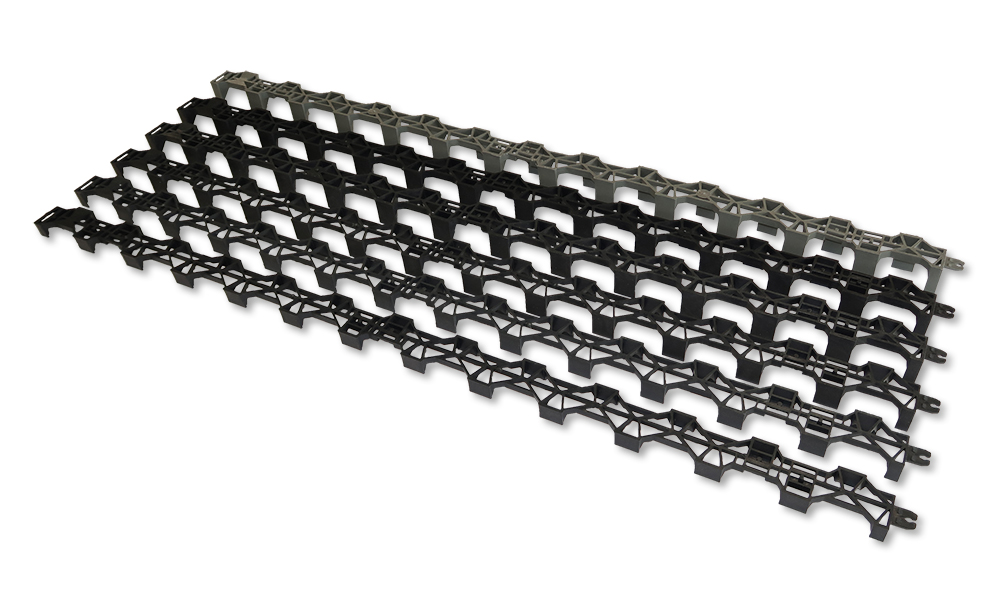

PM DRUNTER FIX is a U-shaped concrete spacer strip made of PVC-free plastic for the rational laying of horizontal reinforcement on the construction site. The large profile width of 45 mm ensures a wide bearing surface and excellent resistance to tilting, prevents it from being pressed into soft substrates such as perimeter insulation when laid upside down.

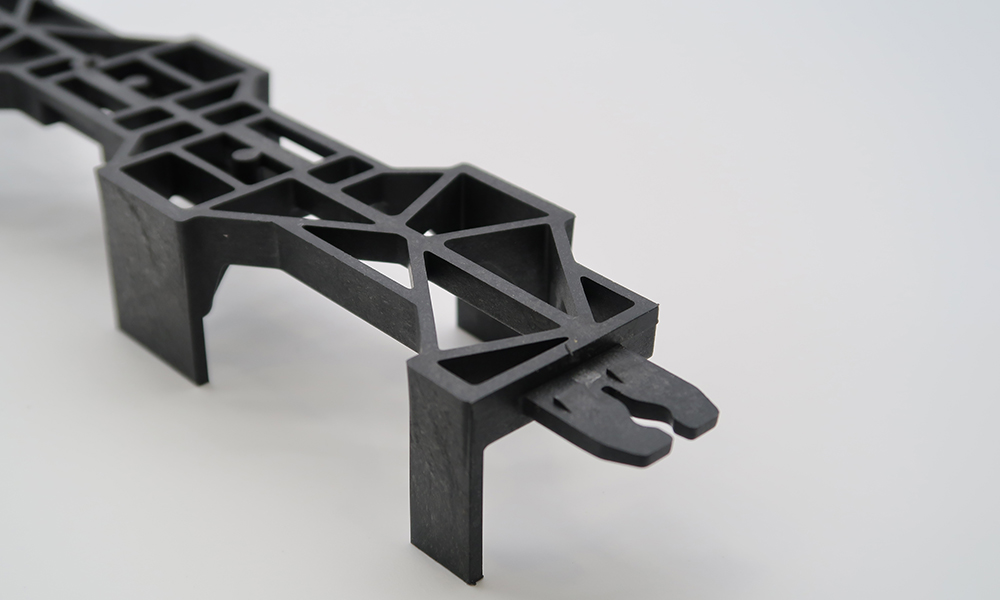

Large lateral and top recesses ensure excellent concrete flow. PM DRUNTER FIX is suitable for concrete coverings from 20 to 50 mm thick and 1 m long. The PM DRUNTER FIX spacers have matching plug connections at both ends, so they can be extended as required and then also cannot slip. The delivery always includes 2 spacers plugged together to 2 m.

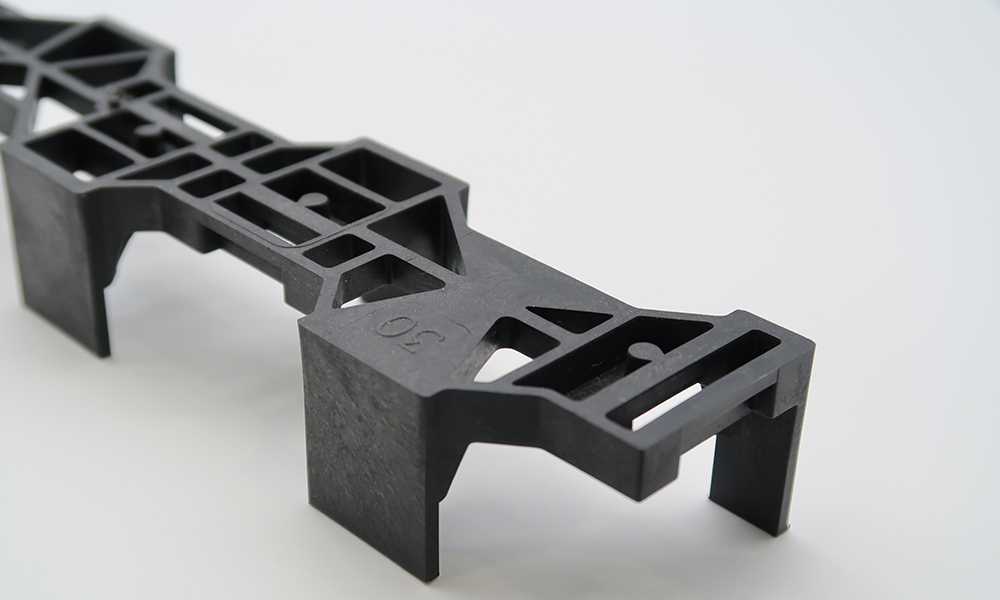

There are also 3 plug-in connections on both sides of the strip, so that the spacer can also be connected crossways and you get even more stability. The PM DRUNTER FIX spacers are made of stable and impact-resistant PP plastic, does not break or splinter when sawed on site, safe to walk on. Due to their special shape, the spacers are also particularly easy to stack for maximum freight savings and low storage usage.

Material polypropylene
Dimension width 45 mm
height 20 – 50 mm
length 1000 mm
Material thickness wall thickness 2mm,
feet 2,5 mm
Colour anthracite
Possible concrete cover 20 mm – 50 mm
Temperature resistance –30 °C to +80 °C
Processing temperature +5 °C to + 35 °C
