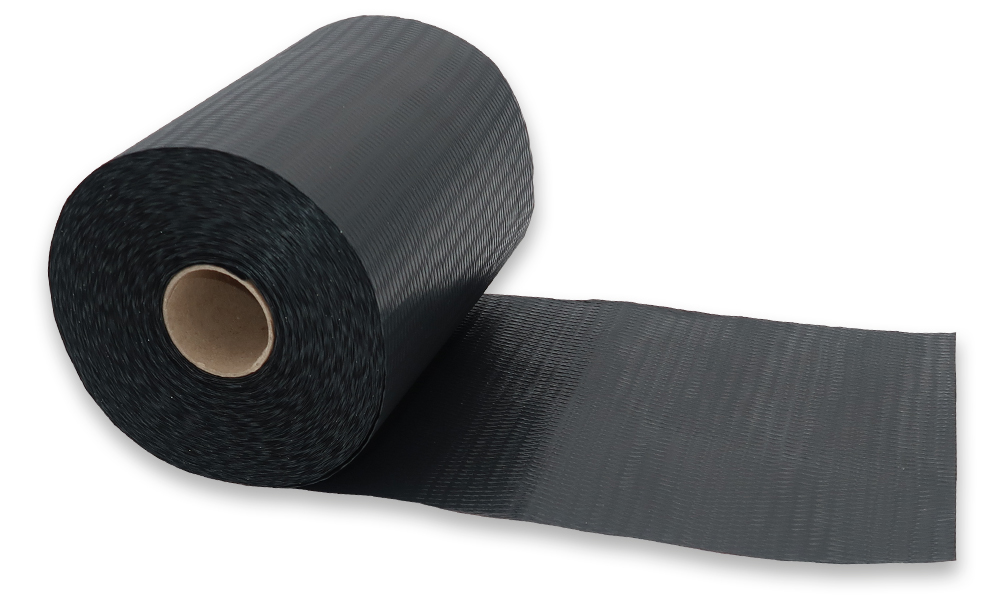

PM LDPE MAUERWERKSPERRE (DAMP-PROOF COURSE)

Damp proof course

The PM LDPE DAMP PROOF COURSE (DPC) is resistant to rising mois­ture, rot-proof and root-resistant, and securely protects the masonry from the ground up. Embossed surface to assist motar adhesion.

The PM LDPE DPC offers tried-and-tested protection with the general building authority test certificate KIWA TBU Greven – issued for use as horizontal waterproofing in or under walls.

Its high elongation at break allows an optimal bridging of settlement cracks. The PM LDPE DPC is both cold-crack-resistant and heat-resistant and does not allow crack formation during the laying process.

Moreover, it is easy and efficient to install directly from the 25 m long roll. With a weight of only 280 g/m², the membrane makes processing much easier. It is UV-stabilised, bitumen-resistant and allows easy and compact storage at trade partner and processor locations.

The PM LDPE DPC boasts tried-and-tested resistance to the effects of acidic, alkaline or saline groundwater, backwater or seepage water – as well as to normal chemical influences from adjacent components.

Material LDPE
Colour black
Thickness 0,35 mm
Watertightness
DIN EN 14909
watertight
Tear strength, ,
DIN 53455 längs
300 N / 5 cm
Tear strength,
DIN 53355 trans.
150 N / 5 cm
Resistance UV-stabilised
Temperature resistance –50 °C to +80 °C
Elongation at break > 300 %
Roll length 25 m*
Roll width 11,5 / 17,5 / 24 / 30 / 36,5 / 50 / 75 / 100 cm*
* Further roll lengths and widths on request!
