PM MONTAGEDÜBEL (PM MOUNTING SCREW)
Accessories

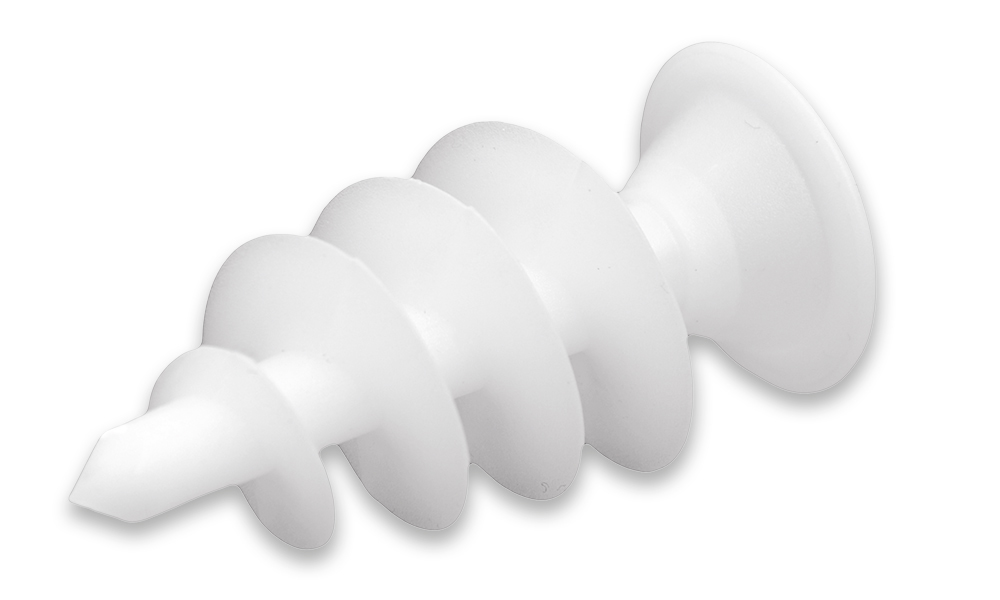

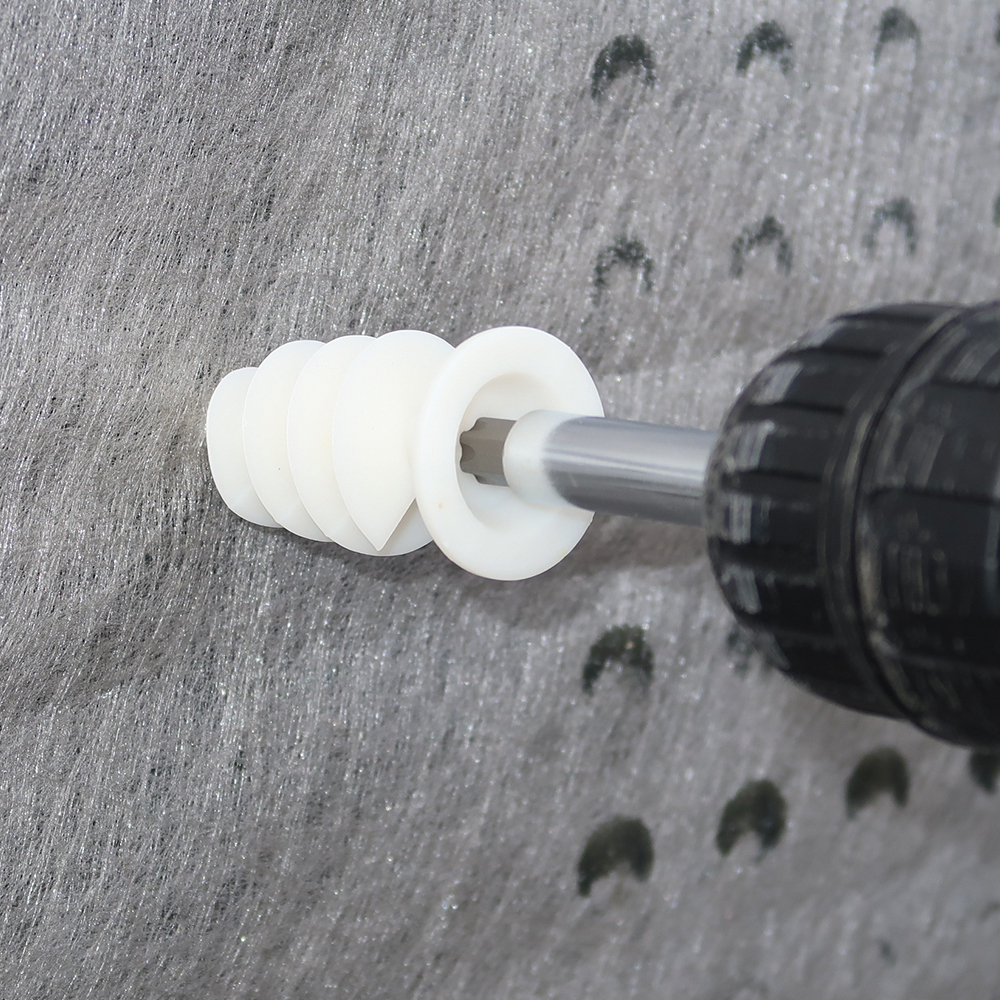

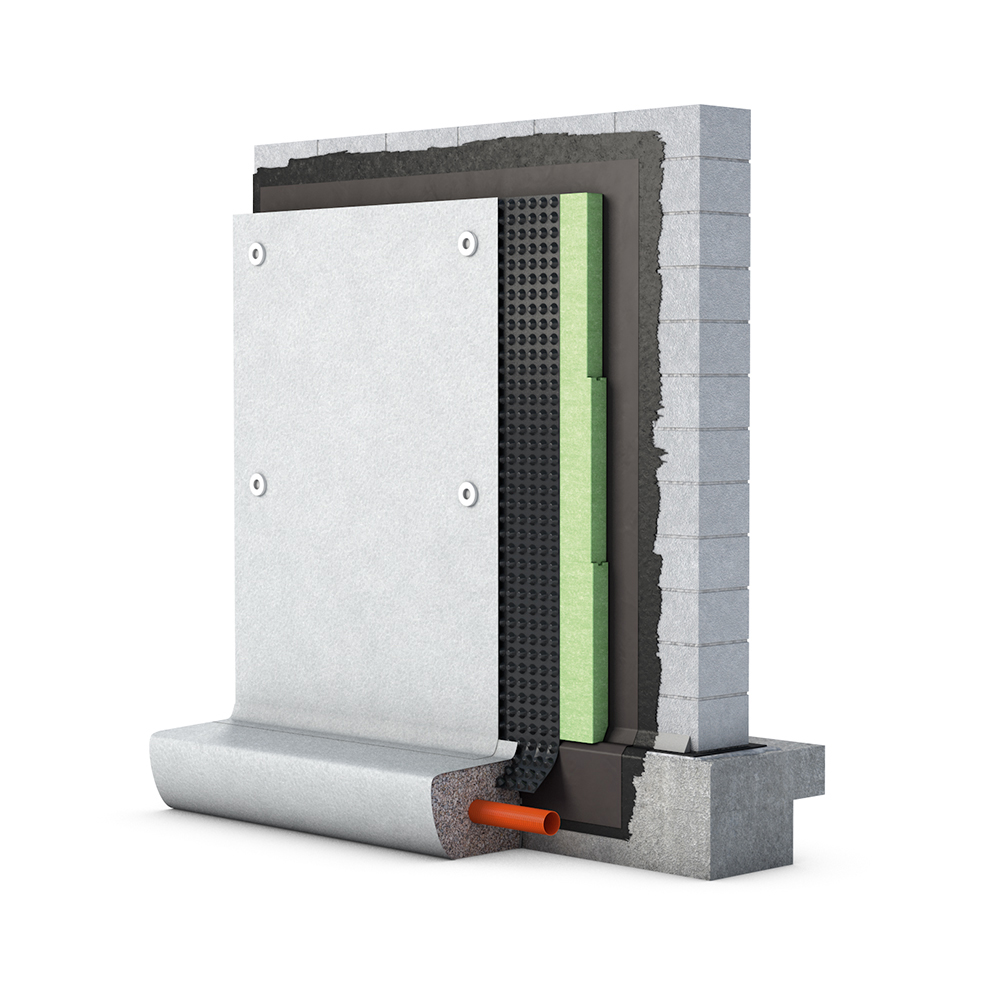

PM Mounting Screw is used to fasten dimpled and drainage membranes to perimeter insulation made of pressure-resistant XPS insulation material. The plastic dowel has a coarse, conical thread as well as a flat head drive TX 40. A prerequisite for efficient use on pressure-stable XPS perimeter insulation from 60 mm thickness is its firm bonding to the waterproofing. In this context, be sure to observe the respective manufacturer's specifications: Only really suitable adhesives such as PMBC or perimeter adhesive should be used.
| Material | Polypropylene |
| Dimension | 55 mm length, 27 mm Ø head diameter |
| Drill hole to use as plug | 4,5 x 40 mm screws |
| Colour | Black or white |
| Consumption | 1 screw per m² |
| Temperature range | –30 °C to +80 °C |
| Delivery form | Packed in a box with 50 pieces or in a bag with 100 pieces, plus free Torx T40 bit |
