PM NAGEL­DICHTUNGSBAND (NAIL-SEALING TAPE)

Go back

PM NAGEL­DICHTUNGSBAND (NAIL-SEALING TAPE)

Accessories

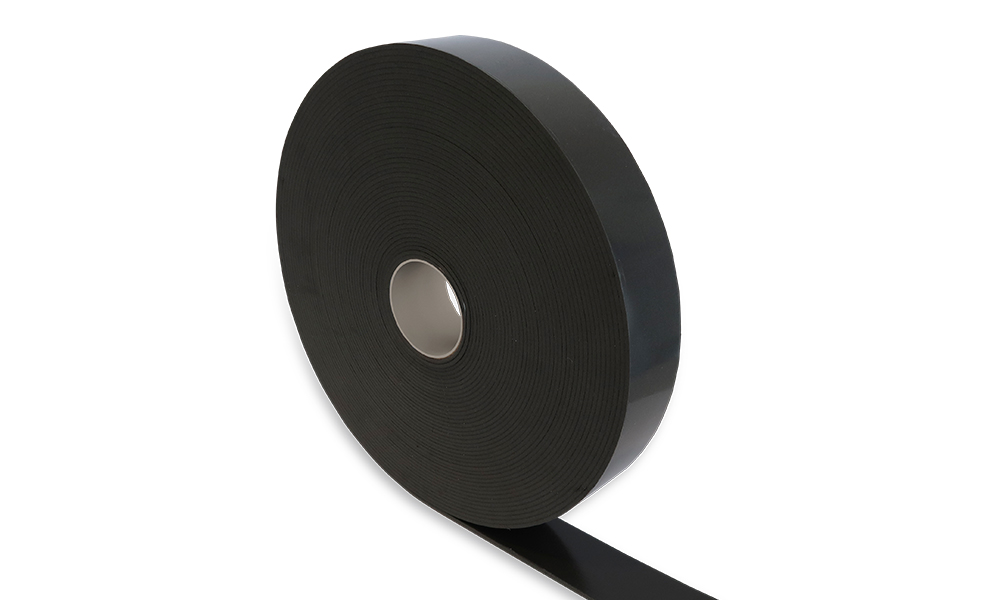

Single-sided adhesive, PE foam nail sealing strip on a roll with a high-quality, synthetic rubber bonding adhesive – for secure­ly sealing nail or screw feed-through openings.

The closed-cell polyethylene foam offers good resilience, good resistance to ageing and is biologically harmless.

The high-quality adhesive with high initial adhesion provides a secure bond on the underlay membrane or counter battens, even at low temperatures.

The PM NAIL SEALING STRIP stands out for its excellent resist­ance to ageing.

Carrier material Polyethylene foam, physically cross-linked, closed cell
Adhesive Synthetic rubber bonding adhesive
anthracite
Colour anthracite
Temperature resistance -30 °C to +80 °C
Processing temperature +5 °C to +40 °C
Thickness approx. 3 mm
Width 60 mm
m/roll 30
Rolls/package 20
Water absorption (ISO 2896) ≤ 1 vol %
Density (ISO 845) 25 kg/m³
Compression hardness (ISO 844) at 25 % 35 kPa
at 50 % 100 kPa
Water resistance Permanently water-resistant
Not resistant to oils, organic solvents, e.g. petrol
Storage dry and UV-protected at +5 °C to +25 °C
