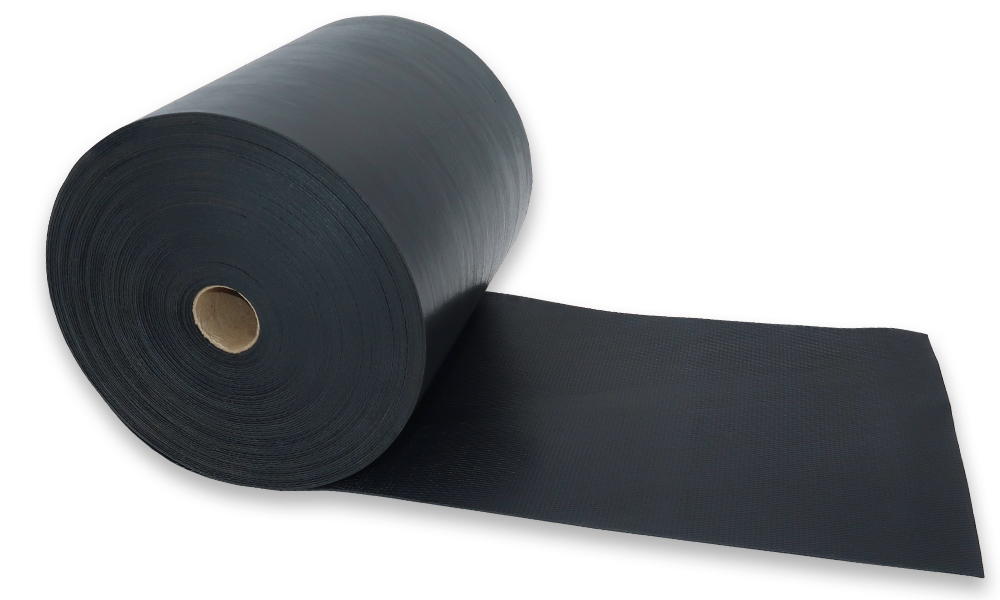

PM PVC MAUERWERKSSPERRE (DAMP-PROOF COURSE)
Damp proof course
The PM PVC DAMP PROOF COURSE (DPC) is a 1.2 mm thick, DIN-compliant, highly elastic, watertight damp proof course and meets the requirements of DIN EN 14909, DIN V 20.000-202 and DIN 18533. It is permanently resistant to rising moisture and rot-proof, securely protec-ting the masonry from the ground up.
The PM PVC DPC is used as a horizontal barrier layer installed in the lowest horizontal joint of the masonry between two mortar layers and can also be used as an L- or Z-barrier in a cavity wall.
It can also be used in the area of wall openings, such as window openings, lintels or balustrades. The PM PVC DPC is UV-stabilised and is easy and efficient to install directly from the 25 m long roll. The PM PVC DPC allows compact storage at trade partner and processor locations. It can be glued with PM POWER FIX cartridge adhesive.
| Material | PVC, soft |
| Colour | anthracite |
| Thickness | 1,20 mm |
| Tear strength | long. approx. 18 N/mm trans. approx. 16 N/mm |
| Elongation at Break | long. approx. 300 % trans. approx. 300 % |
| Root resistance | acc. to DIN 4062 |
| Temperature resistance | –20 °C to +80 °C |
| Roll length | 20 / 25 / 30 m |
| Roll width | 0,115 / 0,175 / 0,240 / 0,300 / 0,365 / 0,500 / 0,600 / 0,750 / 1,00 / 1,20 / 1,50 m |
Related accessories
PM POWER FIX
PM POWER FIX high-performance adhesive is a permanently elastic adhesive for gluing and connecting PMI DPC, PMI dimpled and drainage sheets and PMI roofing membranes.
PM BUTYLKLEBEBAND (BUTYL ADHESIVE TAPE)
PM BUTYL ADHESIVE TAPE, 20 mm wide. Waterproof butyl rubber compound with strong adhesive on both sides for sealing and bonding wind and vapor barriers, underlay membranes, dimpled and drainage membranes as well as DPC.
