PM RANDABSCHLUSSPROFIL (EDGE PROFILE)
Accessories

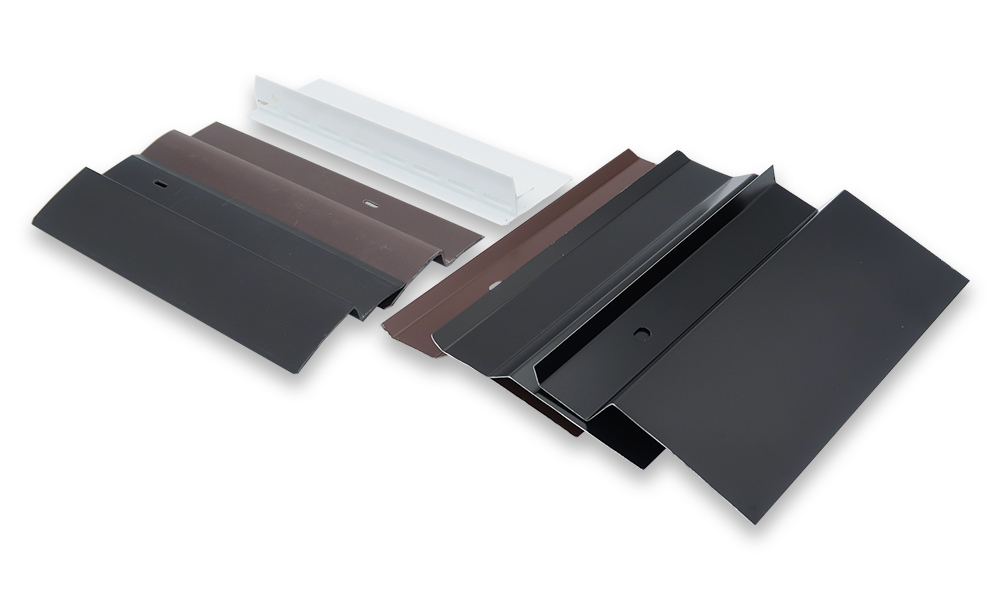

An PM-edge profiles is used as the top finishing element on dimpled and drainage membranes. It reliably prevents stones and soil from falling behind the dimpled sheet.
The profile is equipped with pre-punched holes, so that it can be securely fastened to the masonry. The plastic profile can be used in a non-visible area. However, the metal version should be selected if it will be permanently exposed.
Plastic version: | |
Material | PVC |
Colour | back or brown |
Dimensions | approx. 65 mm x 2.00 m for dimpled sheets up to 10 mm thickness |
Mounting | Punched slots prevent the profile from bulging due to thermal expansion |
Delivery format | 20 pieces in bundle |
Metal version: | |
Material | Galvanised steel sheet, painted with PE paint protection foil on the outside |
Colour | black or brown paint |
Dimensions | approx. 115 mm x 2.00 m for dimpled sheets up to 10 mm thickness approx. 110 mm x 2.00 m for dimpled sheets up to 20 mm thickness (black) |
Mounting | Punched holes The PE paint protection foil remains in the profile after filling and protects the paint. After the pit is filled, the paint protection foil can be removed by pulling it off evenly at a right angle. |
Delivery format | 10 pieces in bundle |
