PM 3SG-GEOTEX

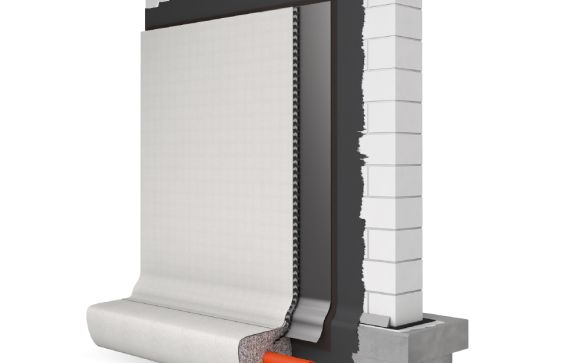

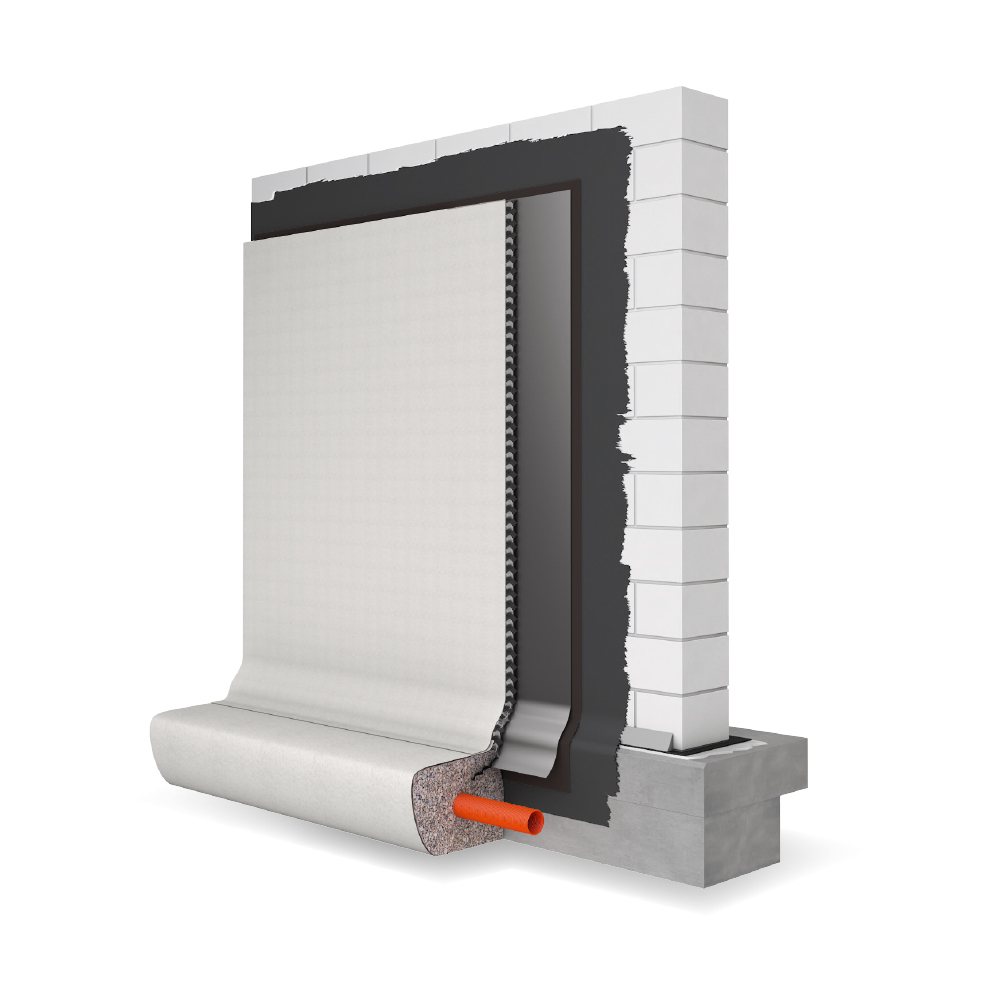

PM 3SG-GEOTEX is a proven three-layer addition as a protection and drainage system for the polymer-modified bitumen coating (PMBC) on basement walls.
The three-layer PM 3SG-GEOTEX protection and drainage system is a high-quality addition to polymer modified bituminous thick coatings (PMBC) for exterior basement walls. Thick coatings act as a permanent waterproofing, filling in cracks and joints, but for backfilling or subsequent soil settling, they can be extremely sensitive to impacts and pressure.
The result: elaborate time-intensive and thus cost-intensive safeguarding work for the backfilling process and the risk of later complaints. PM 3SG-GEOTEX solves multiple problems as a complete, multi-layer protection and drainage system for below-ground structures with PMBC or other waterproofings.

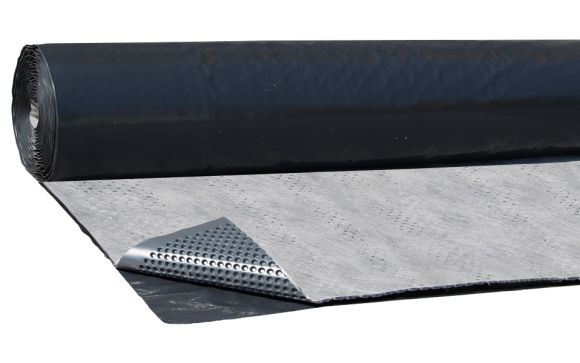

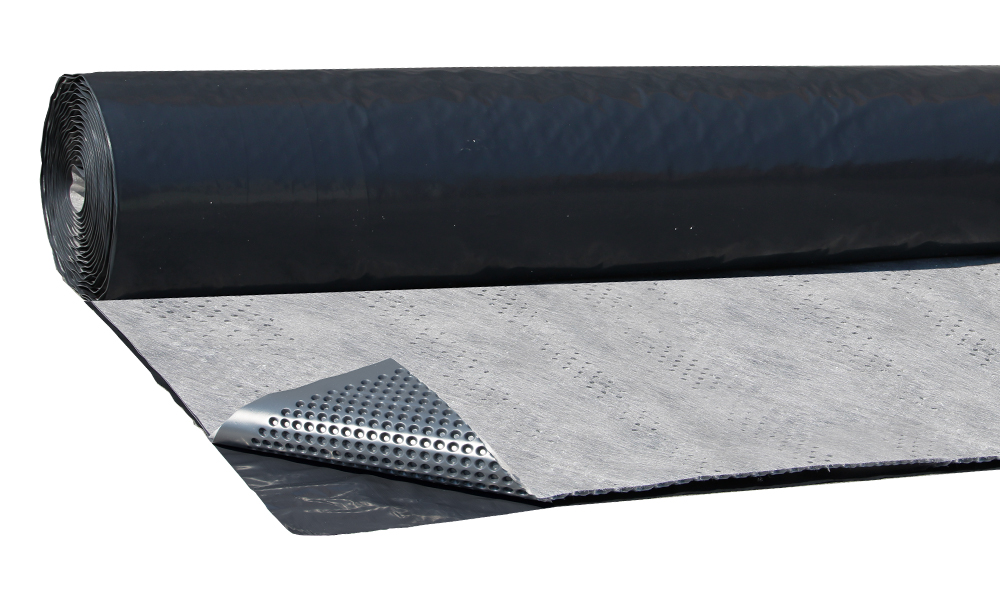

PM 3SG-GEOTEX consists of a dimpled membrane, a rugged geotextile and a sliding foil on the back side. The sliding film distributes the effective earth pressure and acts as a sliding surface in case of any settling of the filling soil. The protective effect meets the requirements of DIN 18533. The good water draining capacity of PM 3SG-GEOTEX is multiple times higher than required by drainage standard DIN 4095.
PM 3SG-GEOTEX has a compressive strength of 200 kN/m². The drainage sheet is available in many different length and width variations.
Technical Data
| Dimpled membrane | HDPE |
|---|---|
| Sliding film | LDPE approx. 200 μm |
| Geotextile | polypropylene |
| Total weight | approx. 780 g/m² |
| Dimple height | 8 mm |
| Compressive strength | approx. 200 kN/m² = 20 t/m² |
| Water flow capacity in the plane | approx. 2,4 l/s·m at 20 kPa rigid/soft |
| Roll length | 12,5 / 15 / 20 m |
| Roll width | 0,5 / 0,75 / 1,0 / 1,5 / 2,0 / 2,5 m |
| Air volume between the dimples | approx. 5,5 l/m² |
| Temperature resistance | –30 °C to +80 °C |
| Chemical properties | chemical-resistant |
| Biological properties | resistant to bacteria and fungi, rot-resistant, root-resistant |
| Physiological properties | safe for drinking water |
| Characteristic opening width | approx. 170 μm |
| Water permeability EN ISO 11058 | approx. 100 · 10<sup>-3</sup> m/s |
