PM GEO-TEC-ECOnopp®
PM GEO-TEC-ECOnopp® is a particularly environmentally friendly, three-layer, high-quality protection and drainage system for the polymer-modified bitumen coating (PMBC) on basement walls.

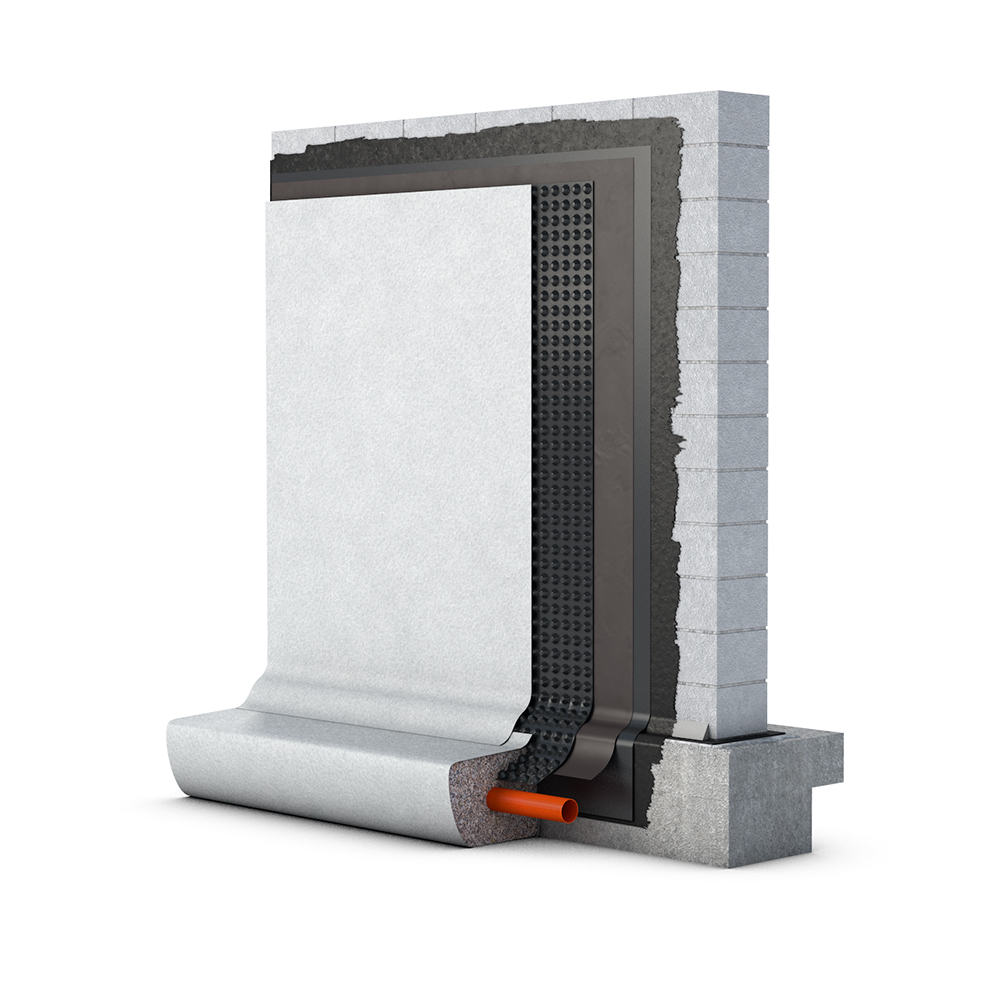

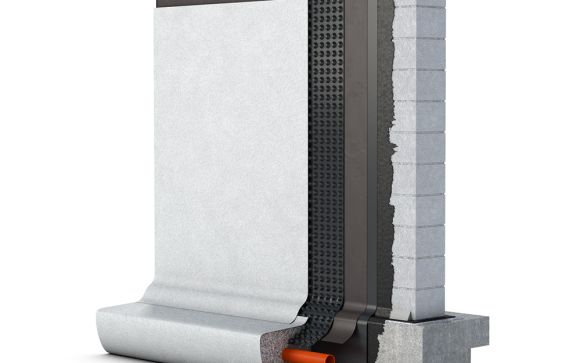

The triple-layer PM GEO-TEC-ECOnopp protection and drainage system is a high-quality supplement to polymer modified bituminous thick coatings (PMBC) for outer basement walls. Thick coatings act as a permanent sealing, filling in cracks and joints, but for backfilling or subsequent soil settling, they can be extremely sensitive to impacts and pressure. The result: elaborate time-intensive and thus cost-intensive safeguarding work for the backfilling process and the risk of later complaints. The PM GEO-TEC-ECOnopp solution gives you a complete multi-layer protection and drainage system for earth-contacting structures fitted with bituminous thick coatings or other sealants.

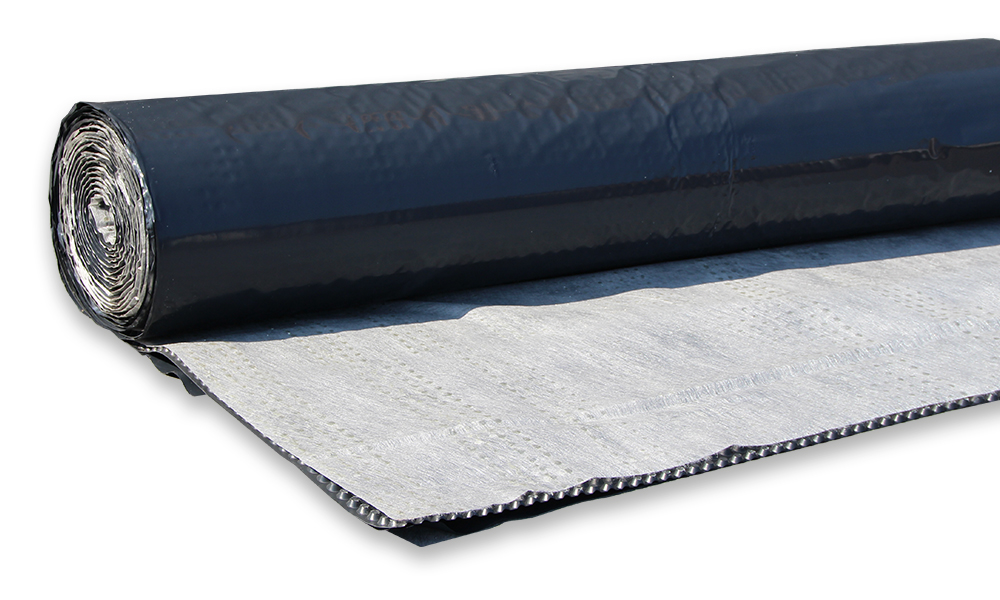

PM GEO-TEC-ECOnopp consists of a dimpled membrane, a sturdy geotextile and a rear-side sliding film. The sliding film distributes the effective earth pressure and acts as a sliding surface in case of any settling of the filling soil. The protective effect meets the requirements of DIN 18533. Moreover, the excellent water draining capacity of PM GEO-TEC-ECOnopp is multiple times higher than required by drainage standard DIN 4095.
PM GEO-TEC-ECOnopp has a compressive strength of 400 kN/m². The drainage membrane is available in many different length and width variations.
Our sustainable, environmentally friendly and resource-saving product line. The use of regranulates relieves the burden on the environment, reduces energy consumption compared to new plastics and reduces CO2 emissions. This closes the recycling cycle - without even making any compromises on quality or economic efficiency.
Technical Data
| Dimpled membrane | HDPE |
|---|---|
| Sliding film | LDPE approx. 200 μm |
| Geotextile | polypropylene |
| Total weight | approx. 1000 g/m² |
| Dimple height | 8 mm |
| Compressive strength | 400 kN/m² = 40 t/m² |
| Water flow capacity in the plane | approx. 2,62 l/s·m at 20 kPa rigid/soft |
| Roll length | 12,5 / 15 / 20 m |
| Roll width | 0,5 / 0,75 / 1,0 / 1,5 / 2,0 / 2,5 m |
| Air volume between the dimples | approx. 5,5 l/m² |
| Temperature resistance | –30 °C to +80 °C |
| Chemical properties | chemical-resistant |
| Biological properties | resistant to bacteria and fungi, rot-resistant, root-resistant |
| Physiological properties | safe for drinking water |
| Characteristic opening width | approx. 170 μm |
| Water permeability EN ISO 11058 | approx. 100 · 10<sup>-3</sup> m/s |
