PM XS

einlagig

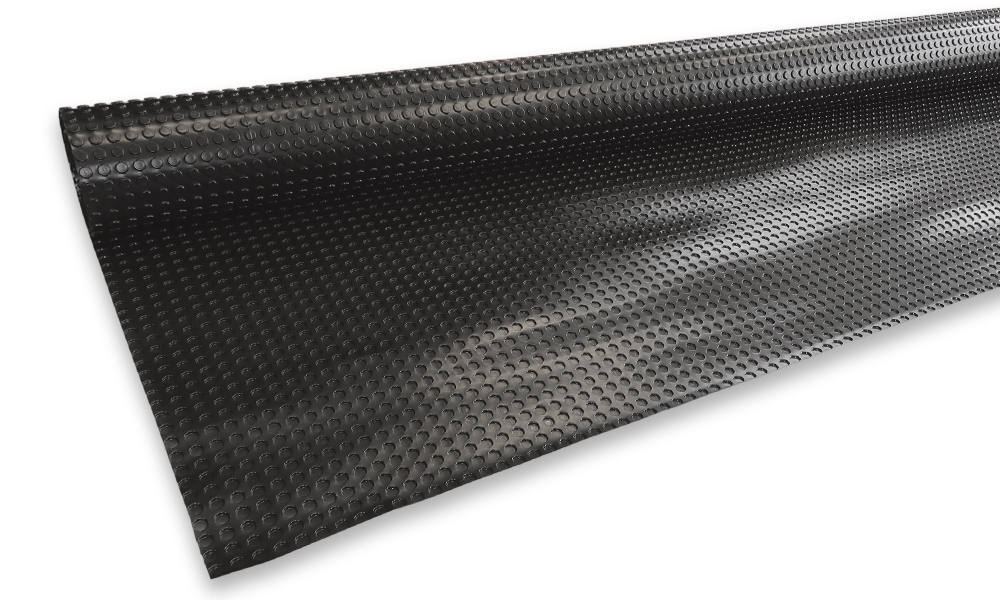

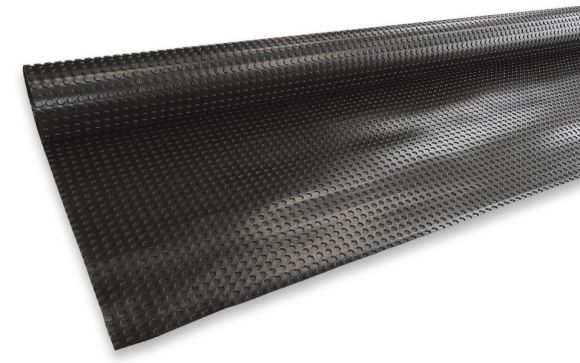

PM XS is an effective protection and drainage system for horizontal indoor applications. PM XS consists of a high-quality, very flat HDPE dimpled sheet.

PM XS is an effective protection and drainage system for horizontal indoor applications. PM XS consists of a high-quality, especially low HDPE dimpled sheet.

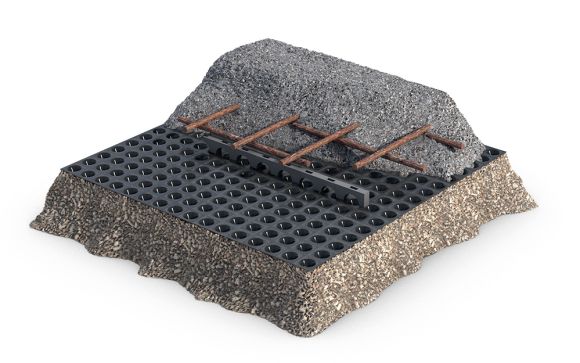

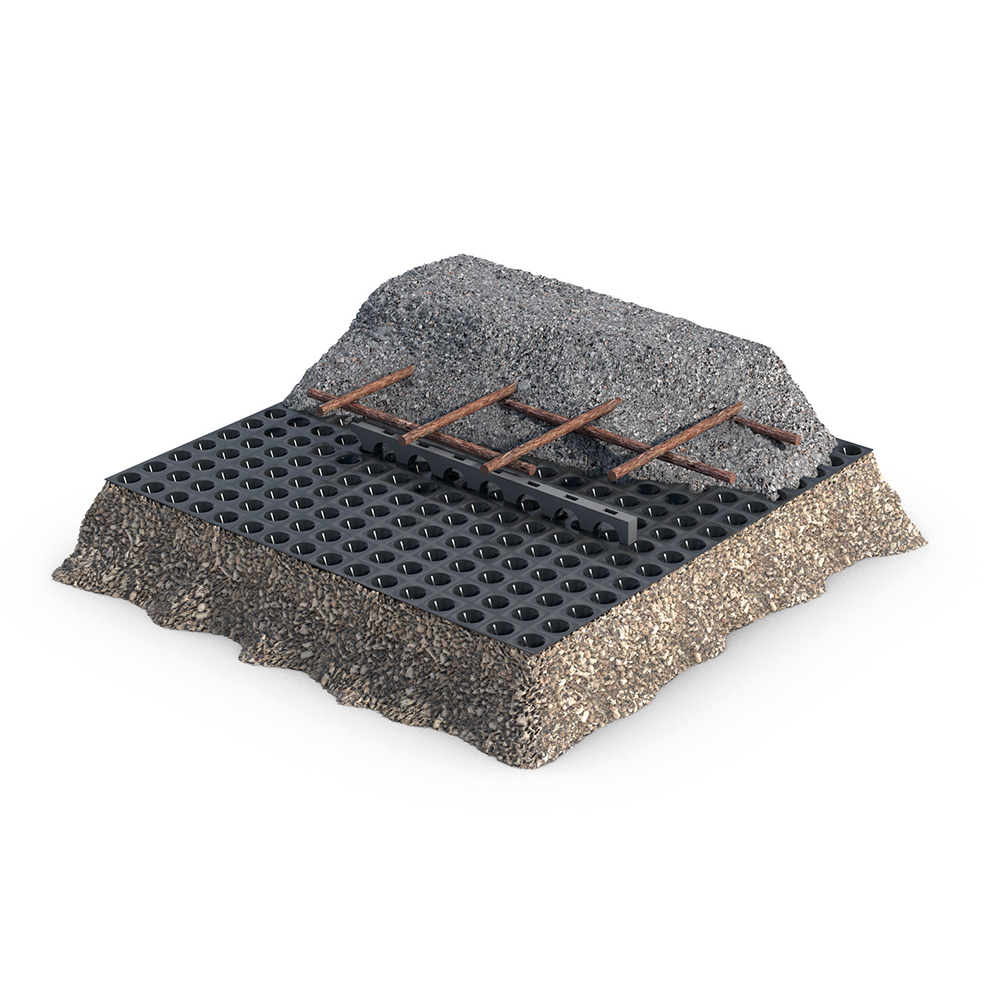

This new flat dimpled sheet has been specially developed for flooring applications to protect against rising damp and contamination. Moreover, PM XS can also be used as a substitute for lean concrete sub-bases.

The special low dimple shape (approx. 4 mm) minimises changes in floor level, while still providing a sufficient air gap to achieve vapour pressure compensation.

Technical Data

Material	HDPE
Total weight	approx. 500 g/m2
Dimple height	approx. 4 mm
Number of dimples	approx. 2.500 dimples/m²
Compressive strength	approx. 320 kN/m²
Colour	black or natural
Roll width	0,5 m / 0,75 m / 1,0 m / 1,5 m / 2,0 m / 2,5 m
Roll length	20 m (Additional lengths on request)
Temperature resistance	–30 °C to +80 °C
Biological. properties	resistant to bacteria and fungi, rot-resistant, root-resistant
Physiological properties	safe for drinking water
Fire behaviour	class E
