PM XS2-GEOTEX
PM XS2-GEOTEX is a flat, effective protection and drainage system and a universal solution for vertical surface drainage on all pressure-stable substrates.

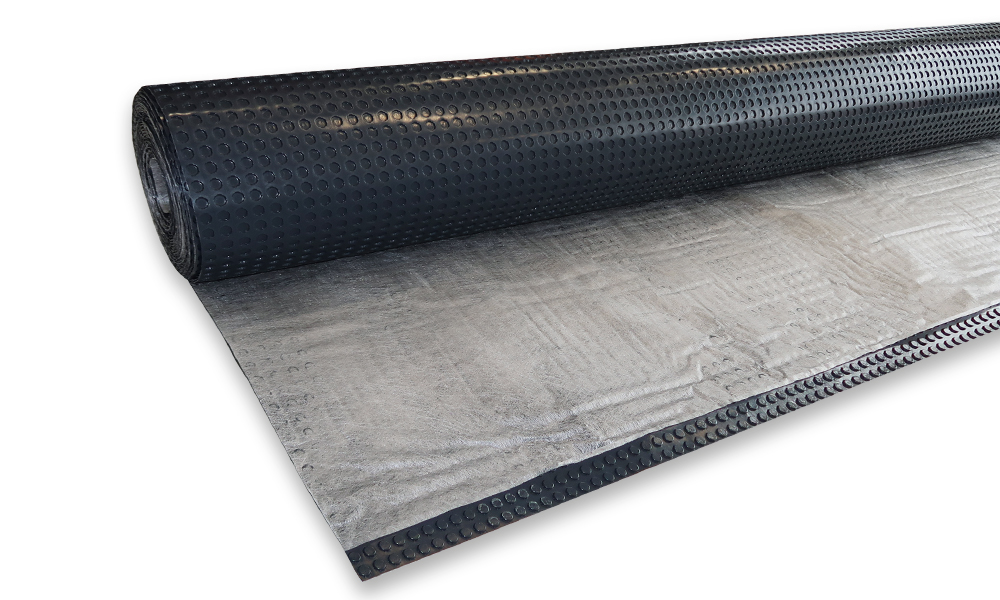

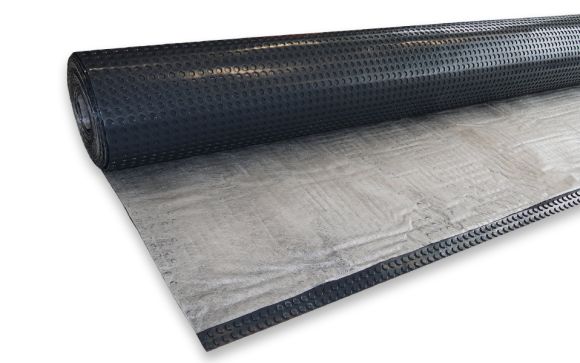

PM XS2-GEOTEX is a flat, effective protection and drainage system and the universal solution for vertical surface drainage on all pressure- resistant surfaces. PM XS2-GEOTEX consists of an especially flat dimpled sheet and a sturdy geotextile. The highly smooth back side allows for a uniform and especially extensive load distribution on the sealing.
This two-layer system protects the sealing underneath against mechanical damage and harmful thermal stress. PM XS2-GEOTEX has a compressive strength of 320 kN/m² and is available in various widths ranging from 0.50 m to 2.50 m.

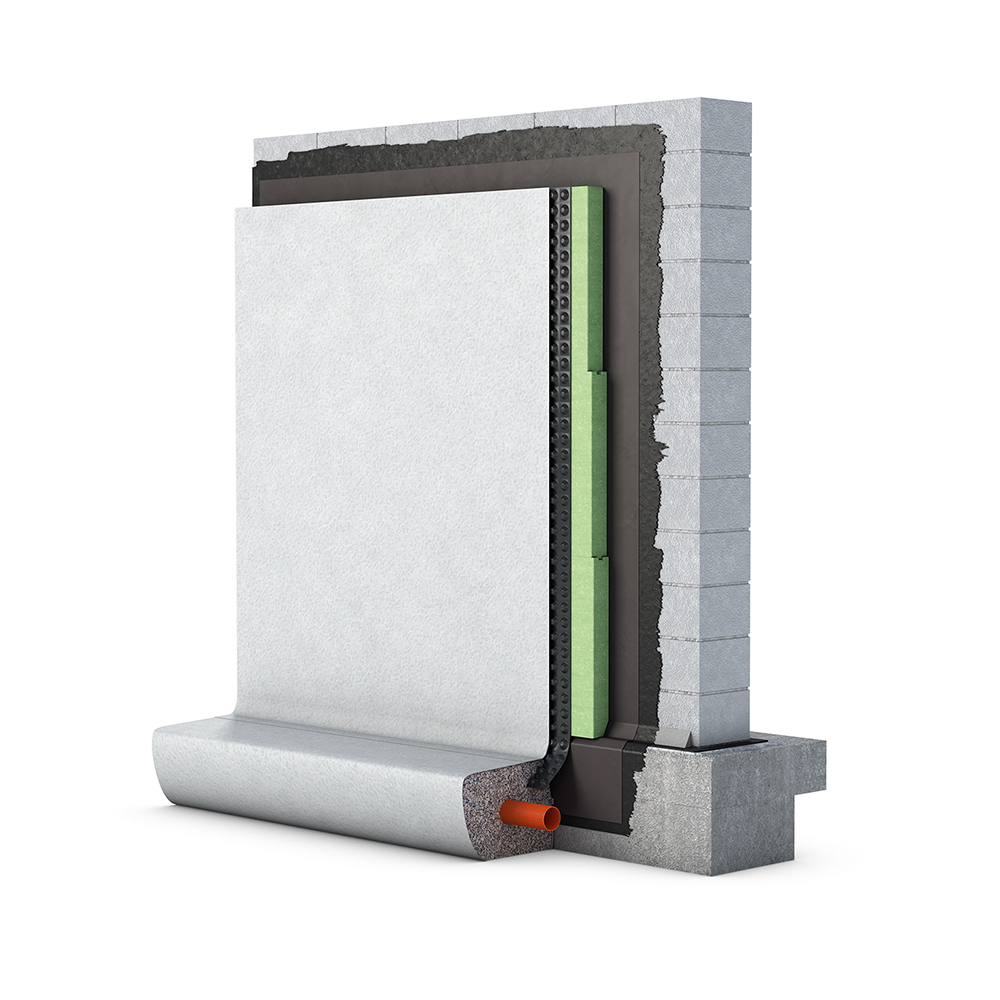

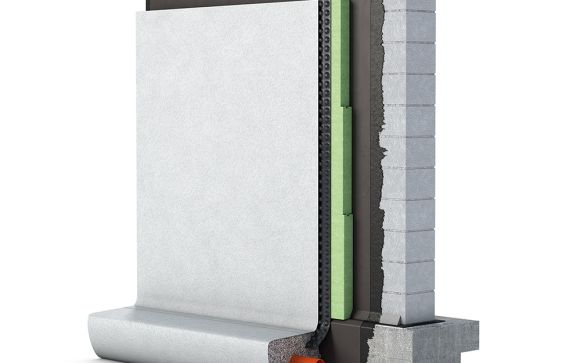

Its good water draining capacity is about twice as high as the requirements of the drainage standard DIN 4095. PM XS2-GEOTEX protects outer cellar walls very securely against waterlogging. The moisture penetrates the geotextile and enters the ducts of the dimpled membrane, where it is securely drained. In the process, the geotextile acts as a filter and prevents the ducts from getting clogged up.
Technical Data
| Material | HDPE |
|---|---|
| Geotextile | polypropylene |
| Dimple height | approx. 4 mm |
| Total weight | approx. 450 g/m² |
| Number of dimples | 2.500 dimples/m² |
| Compressive strength | approx. 320 kN/m² = 32 t/m² |
| Colour | black |
| Water flow capacity in the plane | approx. 0,61 l/s·m at 20 kPa rigid/soft |
| Roll width | 15 lfdm (Additional lengths on request) |
| Roll length | 0,5 / 0,75 / 1,0 / 1,5 / 2,0 / 2,5 m |
| Air volume between the dimples | approx. 5,5 l/m² |
| Temperature resistance | –30 °C to +80 °C |
| Biological properties | resistant to bacteria and fungi, rot-resistant, root-resistant |
| Physiological properties | safe for drinking water |
| Fire behaviour | class E |
