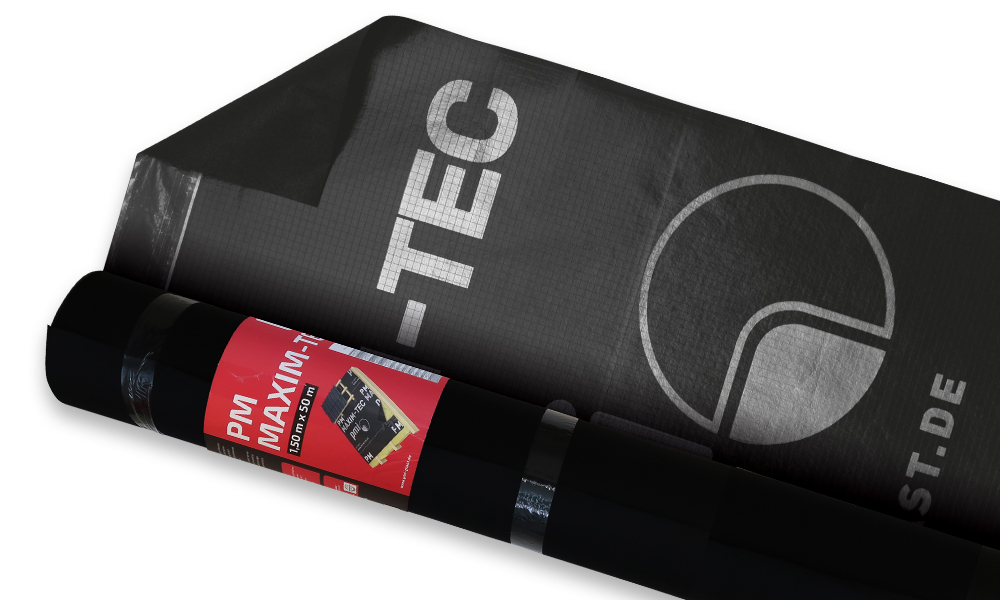

PM MAXIM-TEC
Roofing underlay
Ideal for your application

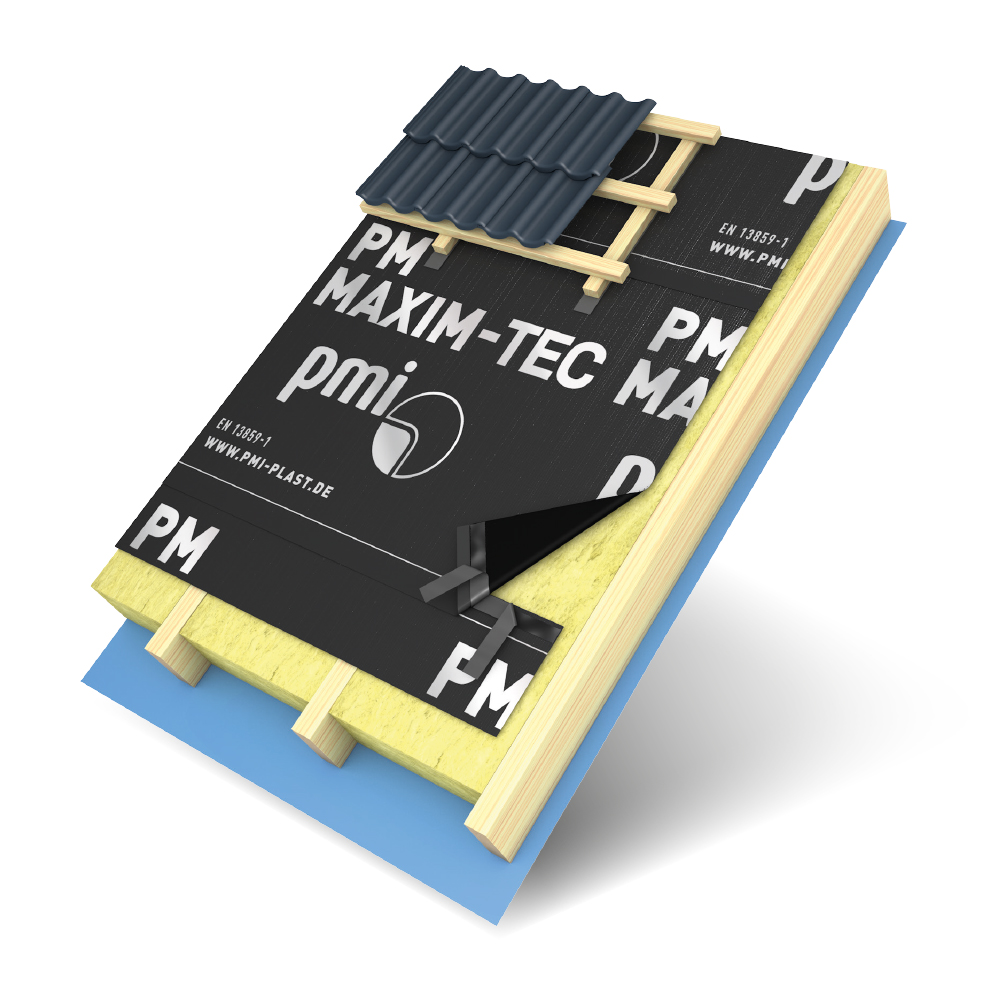

- As a breathable, water and wind resistant roofing membrane for the best possible safety on pitched roofs with rear ventilated and non-ventilated designs.
- For renovation and new construction, including under photovoltaic systems and solar thermal power.
- As underlay and waterproof membrane for roofs and walls.
- Also very well suited as a sarking membrane and as temporary roofing material.
Applications
For pitched roofs with ventilated and non-ventilated constructions, for roofing (EN 13859-1) and walls (EN 13859-2), also suitable as a sarking membrane. Fulfils the ZVDH product data sheet for underlay membranes class UDB-A and waterproof membranes class USB-A. When used as temporary roofing, a nail sealing strip is required.
5 top-class finishing advantages
- Even, smooth polyester staple fibre technology:
Prevents formwork or rafters from becoming caught as on continuous filaments. - Full-surface grid embossing:
Ensures easier cutting – allows for fast and economical installation. - Homogeneous, tear-resistant PET base material with specialised TPU coating:
Makes the membrane puncture-resistant and able to handle loads evenly in all directions. - Integrated self-adhesive edge on the top and bottom – two adhesive strips on top of one another:
Bonds faster and firmer, with a better seal – strong even at low temperatures. - Extra-wide sealing lip:
Holds tight against wind and weather, while also protecting against moisture.
Further advantages
- Flame retardant quality, fire class B.
- MAXIMum tear resistance with a tear force of 420/380 N/50 mm.
- Excellent moisture absorption thanks to polyester- non-woven combination (up to 1 l/m2).
- Successfully tested to keep out driving rain.
- Over 10 % higher grammage than comparable products.
- Resistant to wood protection agents, surfactants and chainsaw oil.
- Reliable wood protection against insects, without any chemical agents.
- Resistant up to 100 °C, highly UV-resistant.
- Highly robust and long-lasting thanks to its high grammage.
- Saves up to 9 % heating output, due to up to 30 % lower air exchange rate.
Material | Breathable polyester-non-woven material combination |
Fire behaviour | Fire class B, flame retardant |
Tear resistance | 420/380 N/50 mm |
Sd-value | 0,15 m |
Moisture absorption | to 0 °C possible |
Width of sealing lip | 25 mm |
Seals out driving rain | Test successfully completed, TU Berlin |
Temperature resistance | up to 100 °C |
Outdoor exposure period | 16 weeks |
Insect-wood protection | according to DIN 68800-2 |
Grammage | 210 g/m² |
Roll weight | 15,75 kg |
Dimensions | 1,50 x 50 m |
