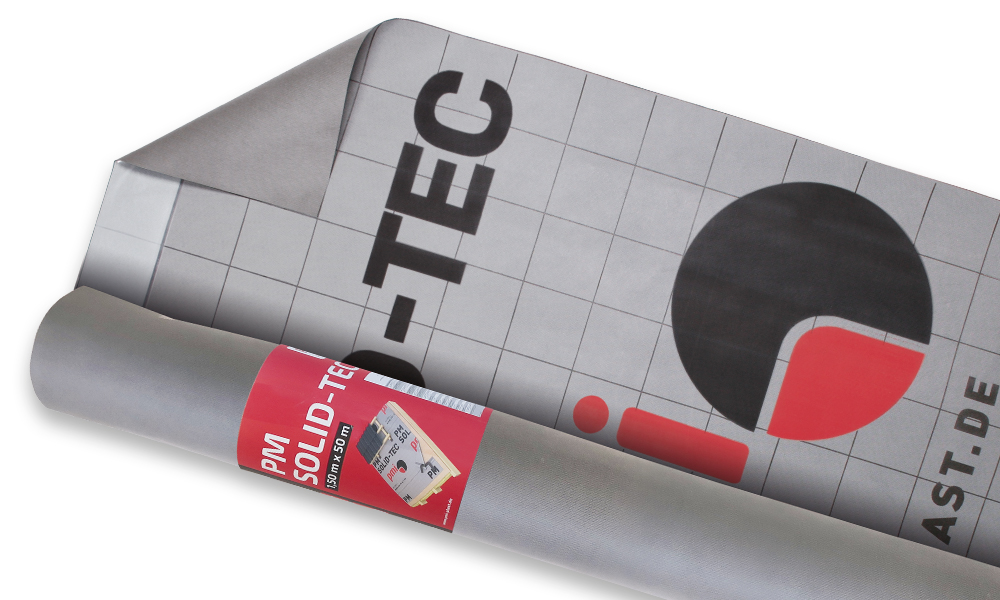

PM SOLID-TEC

Go back

PM SOLID-TEC

Sarking and facade membrane

Ideal for your application

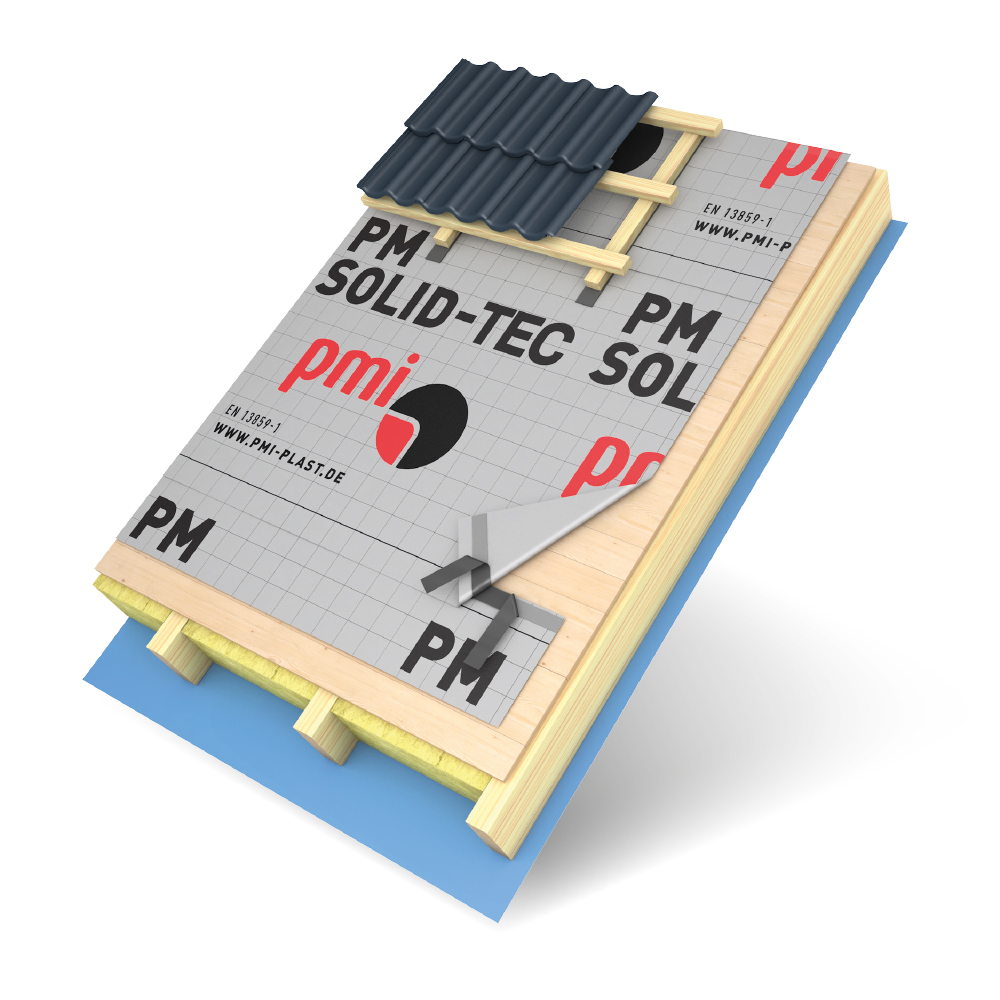

  • As a breathable, water and wind resistant roofing membrane for the best possible safety on pitched roofs with rear ventilated and non-ventilated designs.
  • For renovation and new construction, including under photovoltaic systems and solar thermal power.
  • As underlay and waterproof membrane for roofs and walls.
  • As a breathable, wind and air-tight universal sarking membrane, underlay and waterproof membrane for fully- insulated pitched roofs, or as a facade membrane with closed facade coverage.



Applications

For pitched roofs with ventilated and non-ventilated constructions, for roofing (EN 13859-1) and walls (EN 13859-2), also suitable as a sarking membrane. Fulfils the ZVDH product data sheet for class UBD-A underlay membranes and class USB-A waterproof membranes.

Key finishing advantages:

  • 3-layer composite made of two PP non-woven materials and internal, microporous functional membrane:
    Perfect for use as a wind and air-tight, rainproof underlay.
  • Full-surface grid printing:
    Ensures easier cutting – allows for fast and economical installation.
  • Integrated strong self-adhesive edge on the top and bottom of the membrane:
  • Bonds faster and firmer, with a better seal – suitable for finishing even at low temperatures.
  • Easy finishing for the air-tight layer:
    Very well suited in combination with wood fibre insulation.



Further advantages:

  • High tear resistance in the lateral and longitudinal directions for high tear-resistance.
  • Successfully tested to keep out driving rain.
  • Reliable wood protection against insects, without any chemical agents.
  • Robust and long-lasting with high grammage.
  • Can also be used as temporary roofing thanks to its double-sided adhesive zones (nail sealing strip required).
  • Energy savings thanks to bonded overlap: up to 30 % lower air exchange rate, up to 9 % less heating energy required.
Material Breathable PP non-woven and membrane composite
Fire behaviour Fire class E
Tear resistance 310/215 N/50 mm
Sd-value 0,02 m
Processing temperature to 0 °C possible
Seals out driving rain Test successfully completed, TU Berlin
Temperature resistance up to 80 °C
Outdoor exposure period 10 weeks
Insect-wood protection according to DIN 68800-2
Grammage 150 g/m²
Roll weight 11,25 kg
Dimensions 1,50 x 50 m
