PM XS

Go back

PM XS

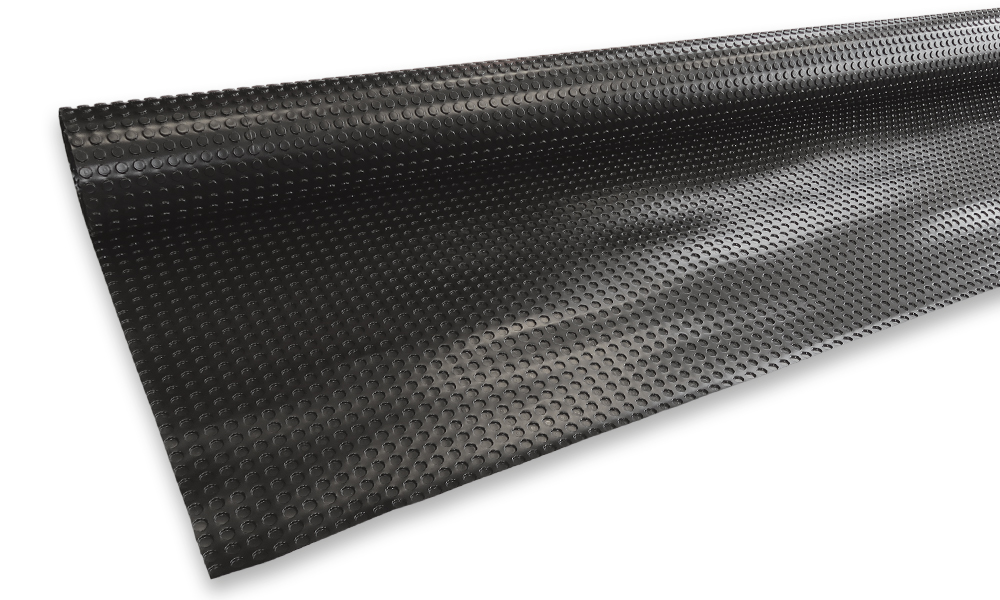

Dimpled sheet

PM XS is an effective protection and drainage system for horizontal indoor applications. PM XS consists of a high-quality, especially low HDPE dimpled sheet.

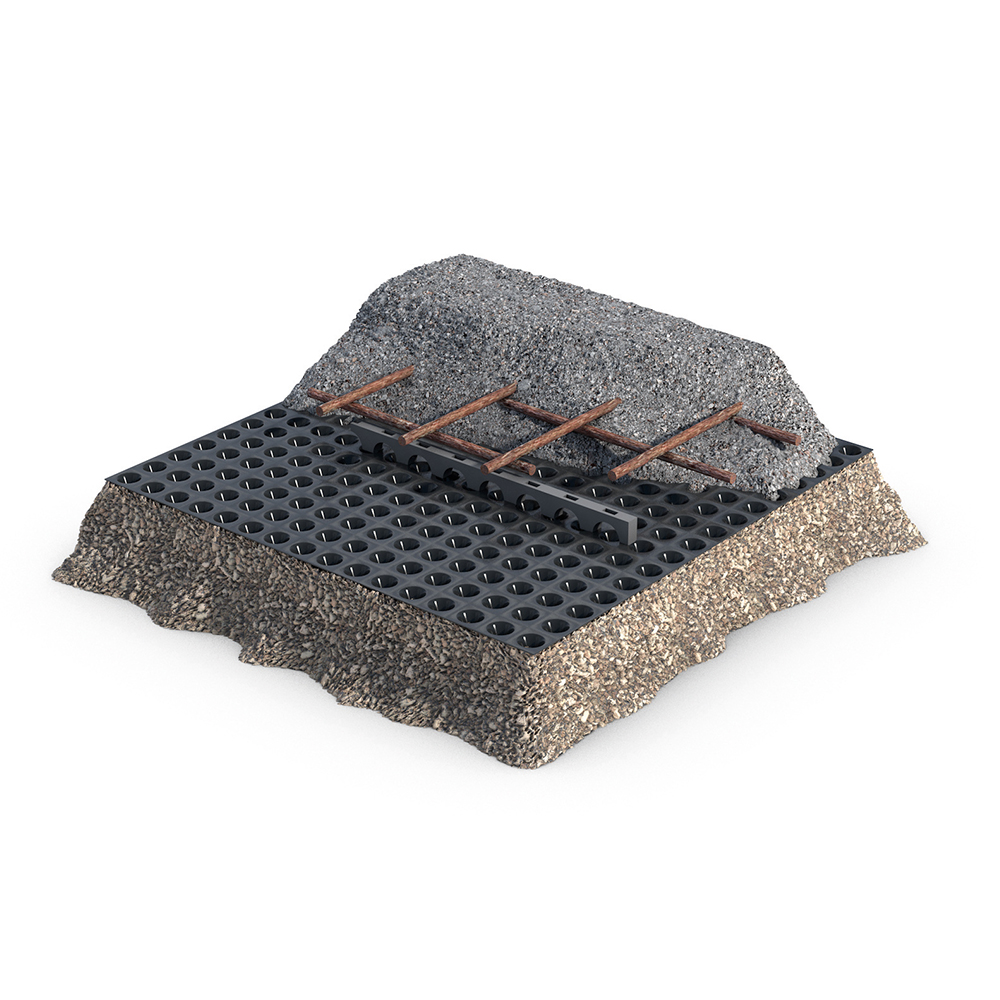

This new flat dimpled sheet has been specially developed for floor­ing applications to protect against rising damp and contamination. Moreover, PM XS can also be used as a substitute for lean concrete sub-bases.

The special low dimple shape (approx. 4 mm) minimises changes in floor level, while still providing a sufficient air gap to achieve vapour pressure compensation.

Material HDPE
Total weight approx. 500 g/m2
Dimple height approx. 4 mm
Number of dimples approx. 2.500 dimples/m²
Compressive strength approx. 320 kN/m²
Colour black or natural
Roll width 0,5 m / 0,75 m / 1,0 m / 1,5 m / 2,0 m / 2,5 m
Roll length 20 m (Additional lengths on request)
Temperature resistance –30 °C to +80 °C
Biological. properties resistant to bacteria and fungi, rot-resistant, root-resistant
Physiological properties safe for drinking water
Fire behaviour class E

Go back

Related accessories

PM MONTAGEDÜBEL (PM MOUNTING SCREW)

PM Mounting Screw is used to fasten dimpled and drainage membranes to perimeter insulation made of pressure-resistant XPS insulation material.

PM PROFI BAND (PRO TAPE)

PM PROFI BAND is a special adhesive tape and is used to bond PMI roofing underlays, common underlays as well as facade membranes with covered surfaces outdoors. The PMI PROFI BAND is also used to bond the PM LDPE DAMPFBREMSFOLIE (VAPOR BARRIER SHEET) and to bond other LDPE foils.

PM POWER FIX

PM POWER FIX high-performance adhesive is a permanently elastic adhesive for gluing and connecting PMI DPC, PMI dimpled and drainage sheets and PMI roofing membranes.

PM BUTYLKLEBEBAND (BUTYL ADHESIVE TAPE)

PM BUTYL ADHESIVE TAPE, 20 mm wide. Waterproof butyl rubber compound with strong adhesive on both sides for sealing and bonding wind and vapor barriers, underlay membranes, dimpled and drainage membranes as well as DPC.
