PM PVC MAUERWERKSSPERRE (DAMP-PROOF COURSE)
PM PVC MAUERWERKSSPERRE is a single-layer, 1.2 mm thick, DIN-compliant, elastic and embossed damp-proof course for single and cavity wall constructions.
The PM PVC DAMP PROOF COURSE (DPC) is a 1.2 mm thick, DIN-compliant, highly elastic, watertight damp proof course and meets the requirements of DIN EN 14909, DIN V 20.000-202 and DIN 18533. It is permanently resistant to rising moisture and rot-proof, securely protec-ting the masonry from the ground up.

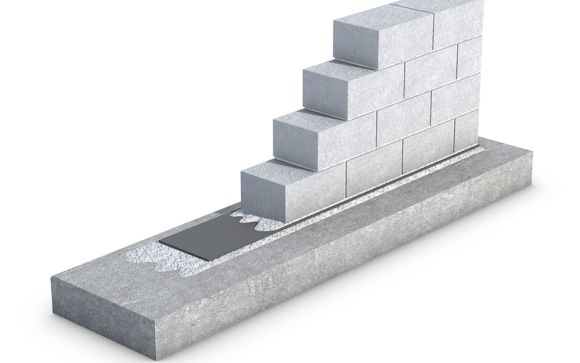

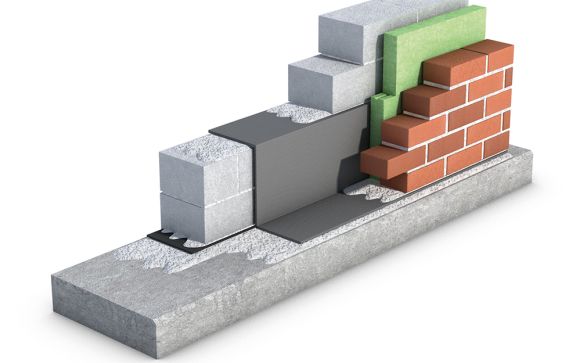

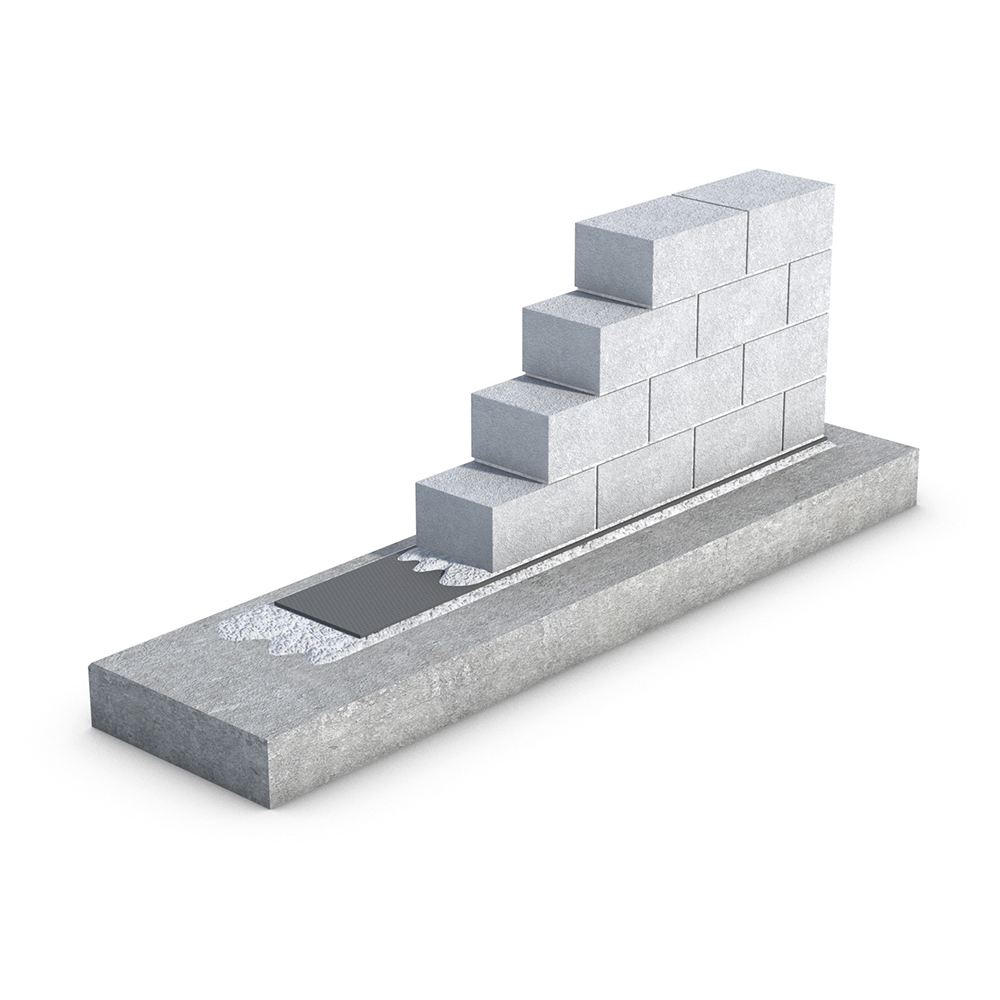

The PM PVC DPC is used as a horizontal barrier layer installed in the lowest horizontal joint of the masonry between two mortar layers and can also be used as an L- or Z-barrier in a cavity wall.
It can also be used in the area of wall openings, such as window openings, lintels or balustrades. The PM PVC DPC is UV-stabilised and is easy and efficient to install directly from the 25 m long roll. The PM PVC DPC allows compact storage at trade partner and processor locations. It can be glued with PM POWER FIX cartridge adhesive.
Technical Data
| Material | PVC, soft |
|---|---|
| Colour | anthracite |
| Thickness | 1,20 mm |
| Tear strength | long. approx. 18 N/mm trans. approx. 16 N/mm |
| Elongation at Break | long. approx. 300 % trans. approx. 300 % |
| Root resistance | acc. to DIN 4062 |
| Temperature resistance | –20 °C to +80 °C |
| Roll length | 20 / 25 / 30 m |
| Roll width | 0,115 / 0,175 / 0,240 / 0,300 / 0,365 / 0,500 / 0,600 / 0,750 / 1,00 / 1,20 / 1,50 m |
