PM 20

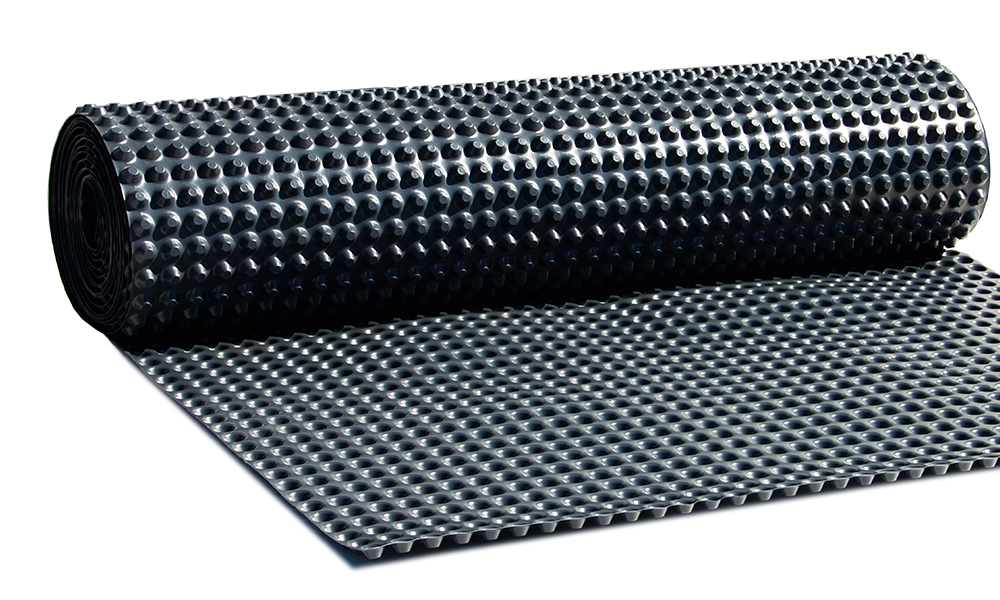

Dimpled sheet
PM 20 is a high-performance drainage membrane and represents the ideal solution for the drainage of rising water, seepage water and backwater. It offers the drainage capacity of conventional dimpled membranes many times over.
The dimple height of 20 mm offers an enormous drainage capacity of approx. 8,54 l/s·m.
The pressure resistance of approx. 160 kN/m² ensures a high level of security and corresponds to a compressive strength of 16 t per m².

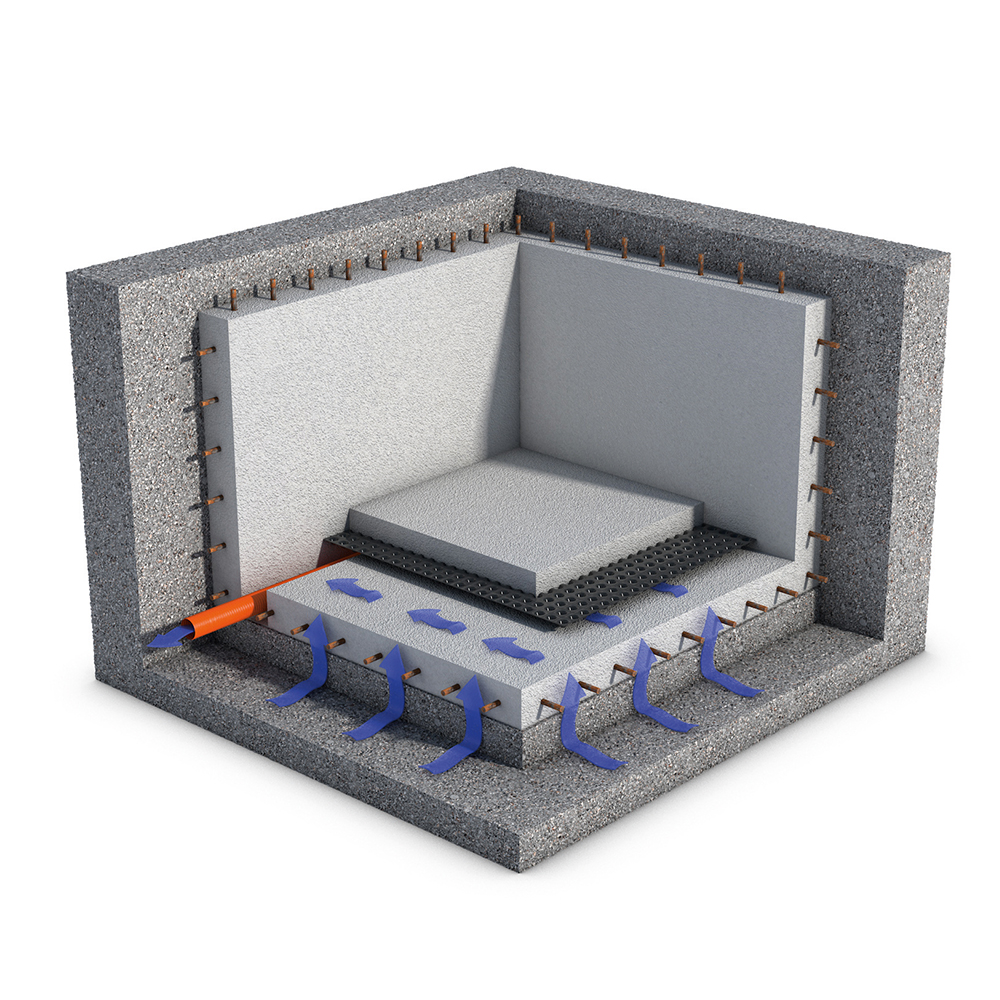

Accumulated water can then already be drained in the shell construction phase.

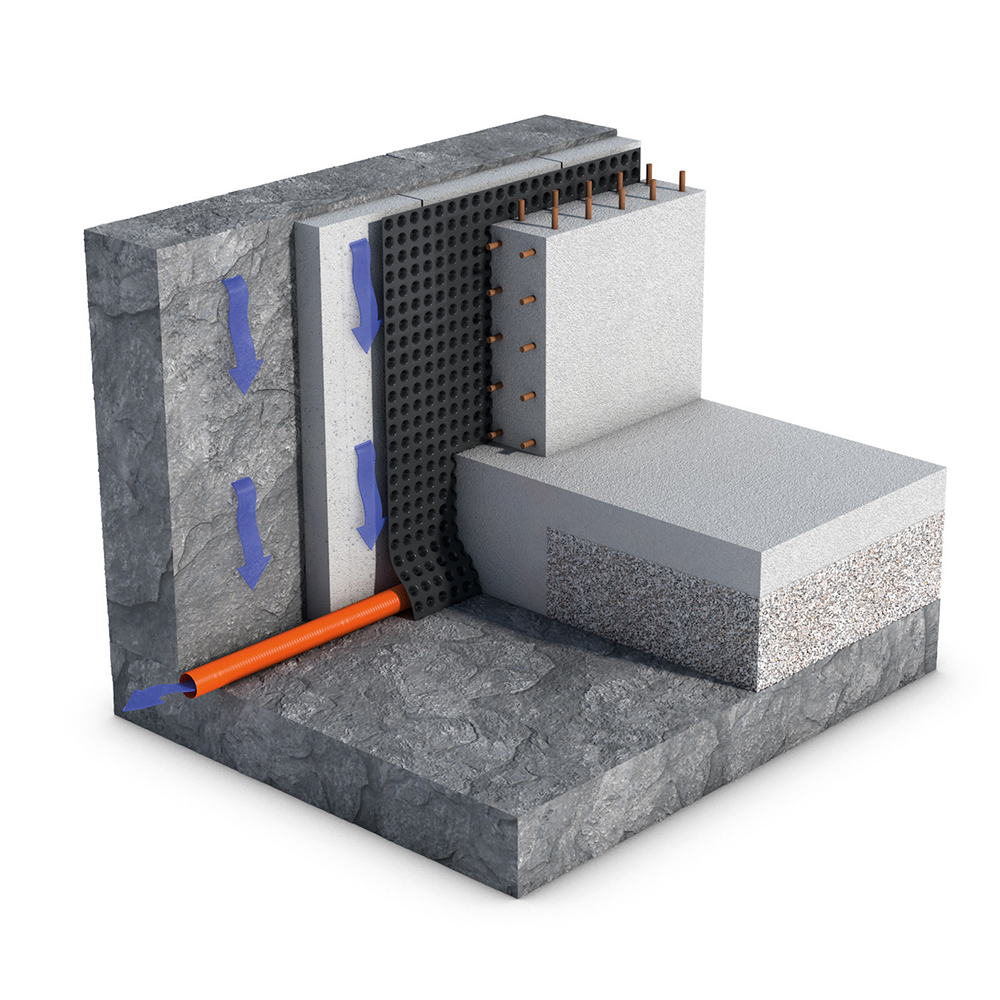

This way, any water that accumulates as the groundwater level rises is securely discharged into the drainage line, where it can be pumped out.
| Material | HDPE approx. 1.000 g/m² |
| Dimple height | 20 mm |
| Compressive strength | approx. 160 kN/m² |
| Water flow capacity in the plane | approx. 8,54 l/s·m |
| Air volume between the dimples | approx. 14 l/m² |
| Temperature resistance | –30 °C to +80 °C |
| Fire behaviour | class E; B1 acc. to class A possible for special structural requirements |
| Roll length | 20 m (Additional lengths on request) |
| Roll width | 0,5 m / 1,0 m / 1,5 m / 2,0 m |
| Chemical properties | chemical-resistant |
| Biological properties | resistant to bacteria and fungi, rot-resistant, root-resistant |
| Physiological properties | safe for drinking water |
Downloads
This product is also available on request with a compressive strength of 190, 210 or 230 kN / sqm.
