PM 8N

Dimpled sheet

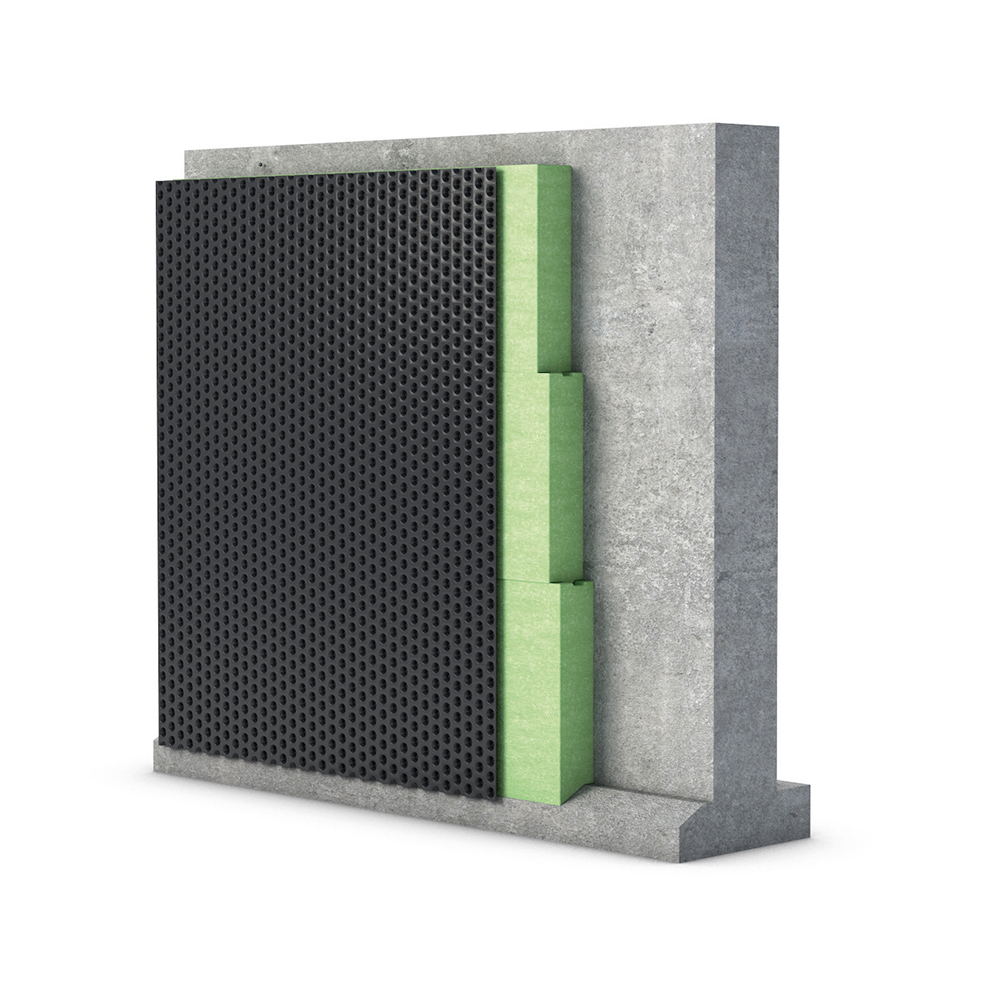

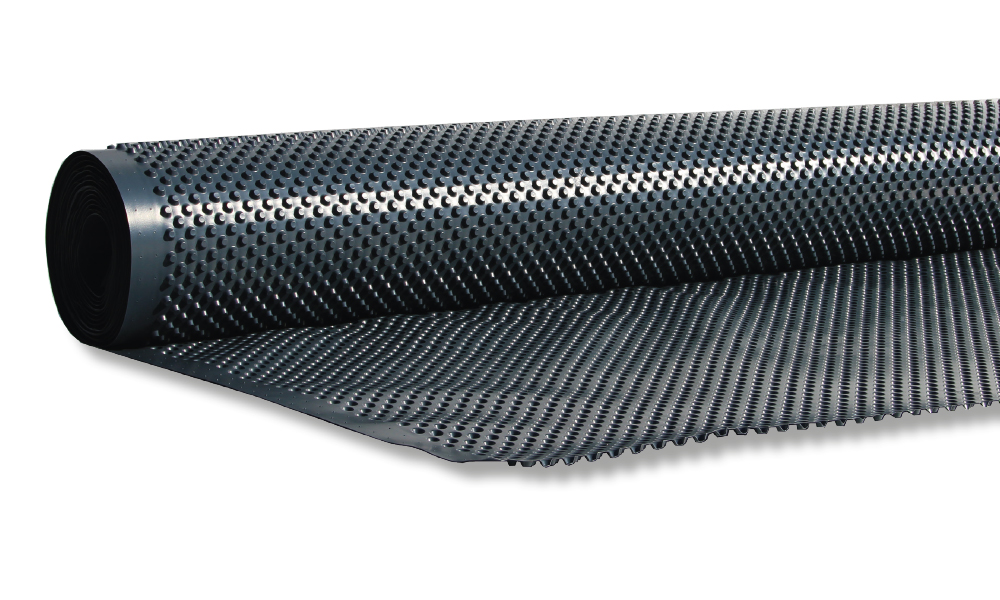

PM 8N dimpled membrane with 8 mm high dimples is the affordable solution for foundation wall protection. The dimpled membranes are used to protect pressure-resistant XPS perimeter insulation and on sufficiently pressure-resistant sealants.

Thanks to their good compressive strength from 200 kN/m² and elongation at break, PM 8N dimpled membranes offer secure protection when backfilling excavation pits. Moreover, the dimples securely separate the foundation wall and the soil.

Material HDPE
Colour black or brown
Number of dimples 1.840 dimples/m²
Dimple height 8 mm
Compressive strength 200 kN/m²
Temperature resistance –30 °C bis +80 °C
Fire behaviour class E
Roll length 20 m
Roll width 0,5 m / 1,0 m / 1,5 m / 2,0 m / 2,4 m / 2,5 m / 3,0 m
Chem. properties chemical-resistant, rot-proof
Biological properties resistant to bacteria and fungi
Physiological properties safe for drinking water

This product is also available with a compressive strength of 150 kN/m².
