PM 8N
Dimpled sheet
PM 8N dimpled membrane with 8 mm high dimples is the inexpensive problem solution for the Sub-base course. These PMI dimpled membranes are manufactured from high quality polyethylene (HDPE). HDPE is groundwater-neutral, pollutant-free in disposal and recyclable.
Thanks to their good compressive strength from 200 kN/m² and elongation at break, PM 8N dimpled membranes offer a cost-effective alternative to Sub-base courses made of lean concrete.
The dimpled sheet PM 8N takes over the function of the lean concrete previously used. This means that work can be carried out regardless of weather conditions and waiting times for the lean concrete to harden are eliminated.

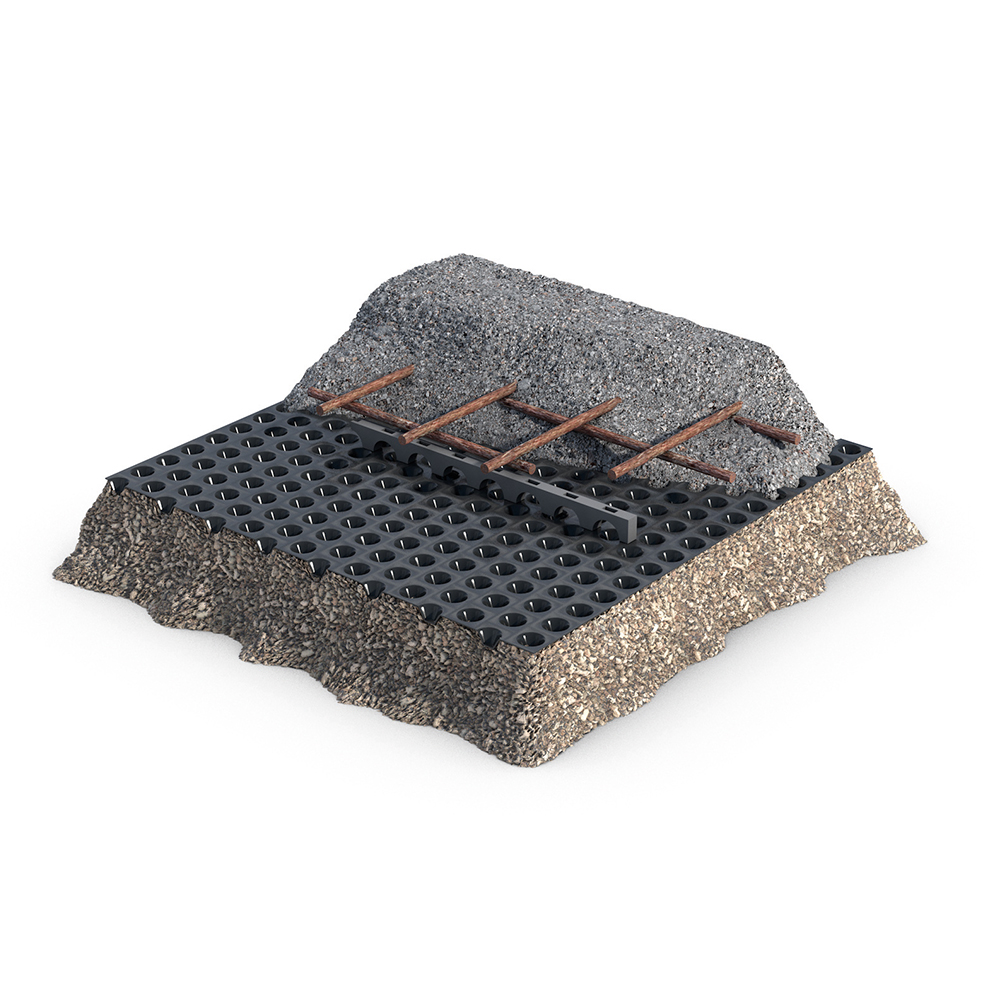

The PM 8N dimpled membranes are simply rolled out on the level and load-bearing substrate. The sheets overlap lengthwise and crosswise by 20 cm. The dimpled sheet also provides protection against rising damp.
| Material | HDPE |
| Colour | black or brown |
| Number of dimples | 1.840 dimples/m² |
| Dimple height | 8 mm |
| Compressive strength | 200 kN/m² |
| Temperature resistance | –30 °C bis +80 °C |
| Fire behaviour | class E |
| Roll length | 20 m |
| Roll width | 0,5 m / 1,0 m / 1,5 m / 2,0 m / 2,4 m / 2,5 m / 3,0 m |
| Chemical properties | chemical-resistant, rot-proof |
| Biological properties | resistant to bacteria and fungi |
| Physiological properties | safe for drinking water |
This product is also available with a compressive strength of 150 kN/m².
