PM STANDARD GS
Dimpled sheet

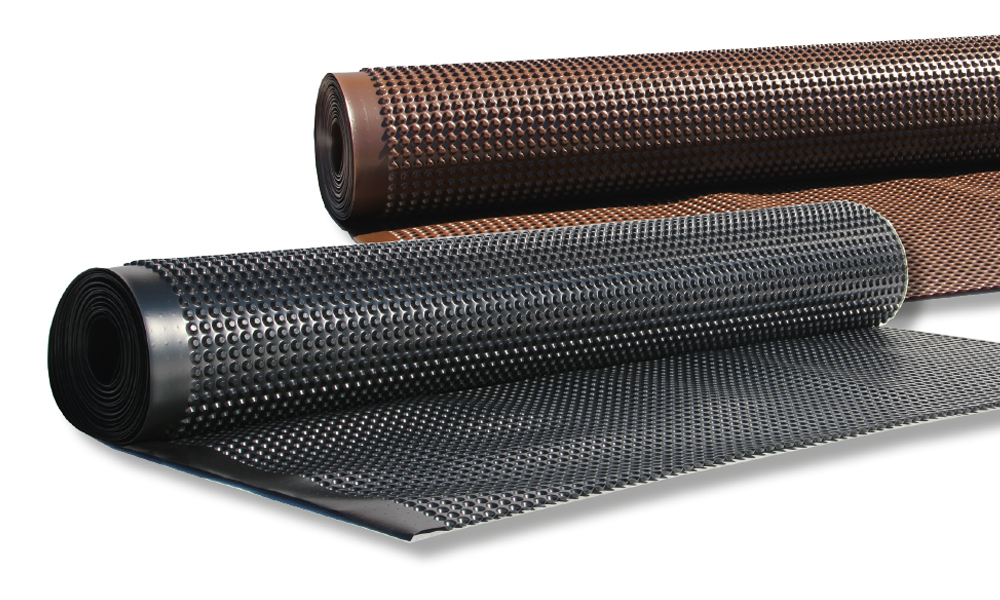

PM STANDARD GS dimpled membrane with 8 mm high dimples is the high-quality solution for foundation wall protection.
These PMI dimpled membranes are manufactured from high-quality high-density polyethylene (HDPE). HDPE is neutral to groundwater, pollutant-free for disposal and recyclable.

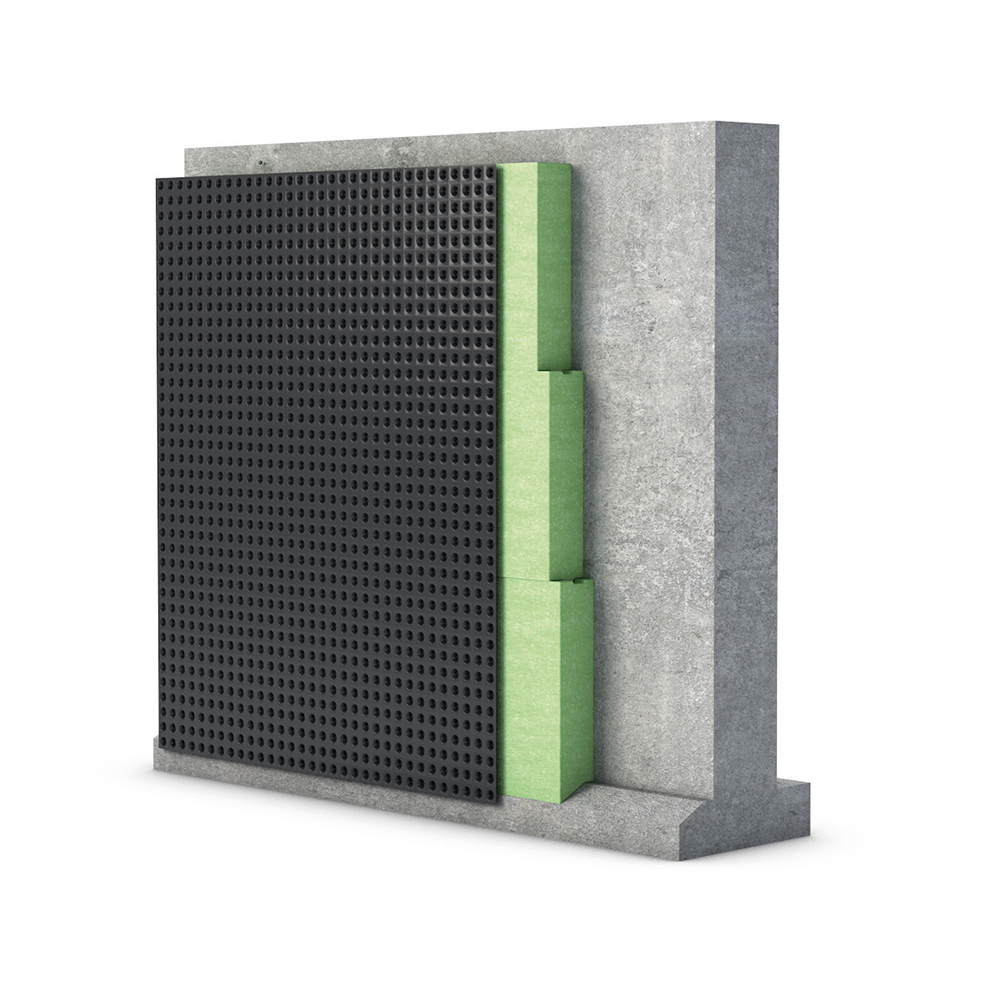

The dimpled membranes are used to protect pressure-resistant XPS perimeter insulation and on sufficiently pressure-resistant sealing. Thanks to their very good compressive strength and elongation at break, PM STANDARD GS dimpled membranes offer secure protection when backfilling excavation pits. Moreover, the dimples securely separate the foundation wall and the soil.
| Material | HDPE |
| Colour | black or brown |
| Number of dimples | 1.710 dimples/m² |
| Dimple height | 8 mm |
| Compressive strength | 250 kN/m² |
| Temperature resistance | –30 °C to +80 °C |
| Fire behaviour | class E |
| Roll length | 20 m |
| Roll width | 0,5 m / 1,0 m / 1,5 m / 2,0 m / 2,4 m / 2,5 m / 3,0 m |
| Chemical properties | chemical-resistant, rot-proof |
| Biological properties | resistant to bacteria and fungi |
| Physiological properties | safe for drinking water |
