PM XS-2-GEOTEX

Drainage membrane

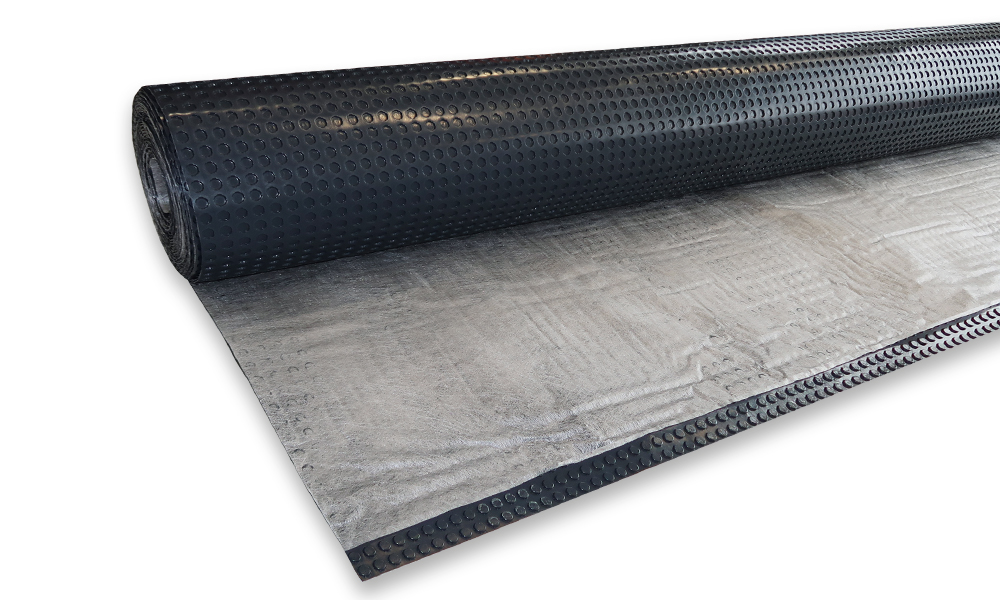

PM XS-2-GEOTEX is a flat, effective protection and drainage system and the universal solution for horizontal surface drainage on all pressure- resistant surfaces. PM XS-2-GEOTEX consists of an especially flat dimpled sheet and a sturdy geotextile. The highly smooth back side allows for a uniform and especially extensive load distribution on the sealing.

This two-layer system protects the sealing underneath against mechanical damage and harmful thermal stress. PM XS-2-GEOTEX has a compressive strength of 320 kN/m² and is available in various widths ranging from 0.50 m to 2.50 m.

Its good water draining capacity is about twice as high as the requirements of the drainage standard DIN 4095. PM XS-2-GEOTEX protects outer cellar walls very securely against waterlogging. The moisture penetrates the geotextile and enters the ducts of the dimpled membrane, where it is securely drained. In the process, the geotextile acts as a filter and prevents the ducts from getting clogged up.

Material HDPE
Geotextile polypropylene
Dimple height approx. 4 mm
Total weight approx. 600 g/m²
Number of dimples 2.500 dimples/m²
Compressive strength approx. 320 kN/m²
Colour black
Water flow capacity in the plane, soft – soft; i = 1,0 approx. 0,61 l/s·m at 20 kPa
Roll width 15 lfdm (Additional lengths on request)
Roll length 0,5 / 0,75 / 1,0 / 1,5 / 2,0 / 2,5 m
Air volume between the dimples approx. 5,5 l/m²
Temperature resistance –30 °C to +80 °C
Biological properties resistant to bacteria
and fungi, rot-resistant, root-resistant
Physiological properties safe for drinking water
Fire behaviour class E
