Waterproofing / damp proof courses

Damp-proof courses (DPCs) for single or cavity walls

Single wall construction

Single Wall Construction

Damp-proof courses are a form of horizontal waterproofing installed between two layers of mortar in the bearing joint of the masonry.
In this way, the masonry is safely protected against rising damp from the ground up.

In accordance with the new waterproofing standard DIN 18533, damp-proof courses are now only installed in one layer. Damp-proof courses should have a non-slip surface for good bonding with the masonry mortar.
The width of the DPC naturally depends on the wall thickness. It should be wide enough for the waterproofing of the floor can be brought up to the horizontal waterproofing of the walls or bonded to it.
In this way, moisture bridges can be prevented.

Cavity wall construction

Cavity wall construction, also known as "faced brickwork", consists of an inner load-bearing wall and an outer facing wall. This non-load-bearing wall serves as weather protection and for the facade design. The cavity in between is filled with insulation – either with an air layer or completely in the form of core insulation.

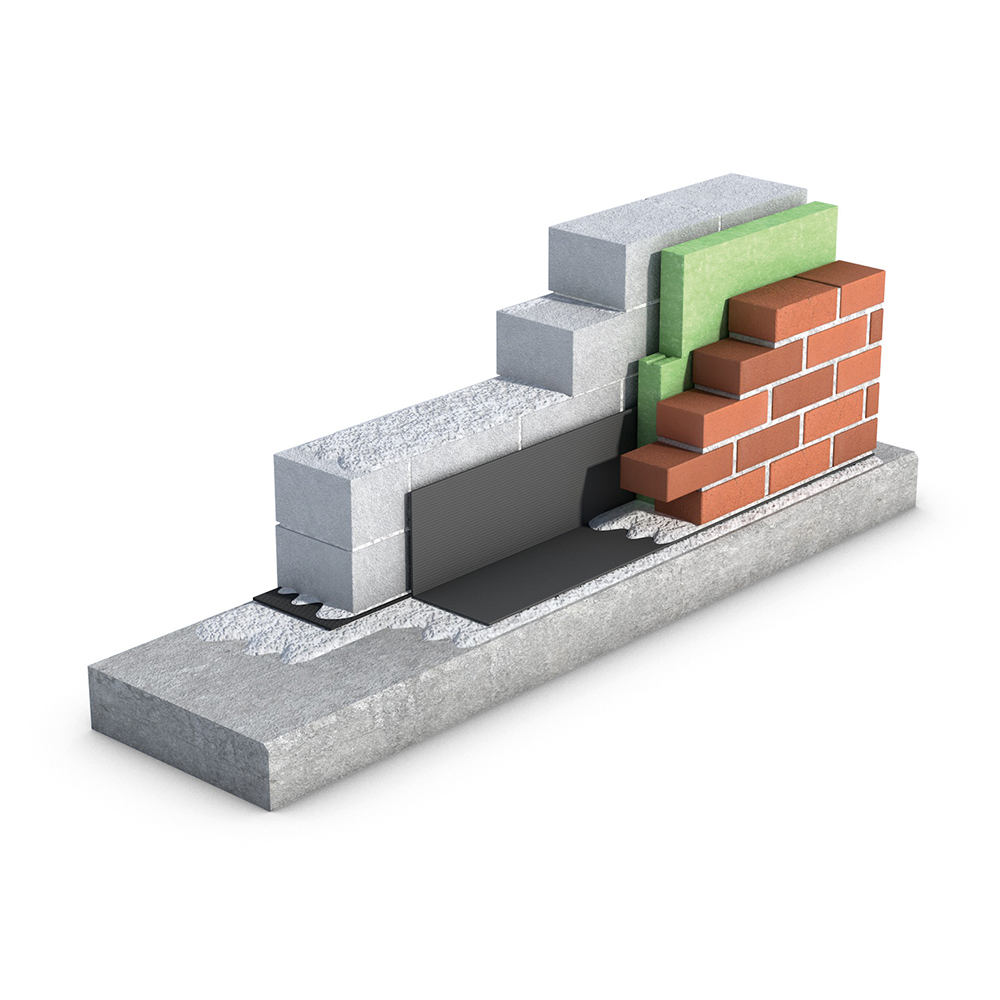

Depending on the quality of the facing brick and mortar joints, moisture can get into the cavity due to strong wind and rain. For this reason, the base of a cavity wall is particularly protected and drained by installing L or Z shaped DPC; DIN-compatible, 1.2 mm thick plastic membranes are usually used as a DPC.

Z-shaped DPCs are built into the load-bearing wall – with the risk that damage will occur in the further process of the construction work on site. L-shaped DPCs are only installed when the faced brickwork is built and attached to the load-bearing wall. The installation of DPC is also designated for all window openings, lintels, parapets or windowsills.

Cavity wall construction

Cold self-adhesive membranes

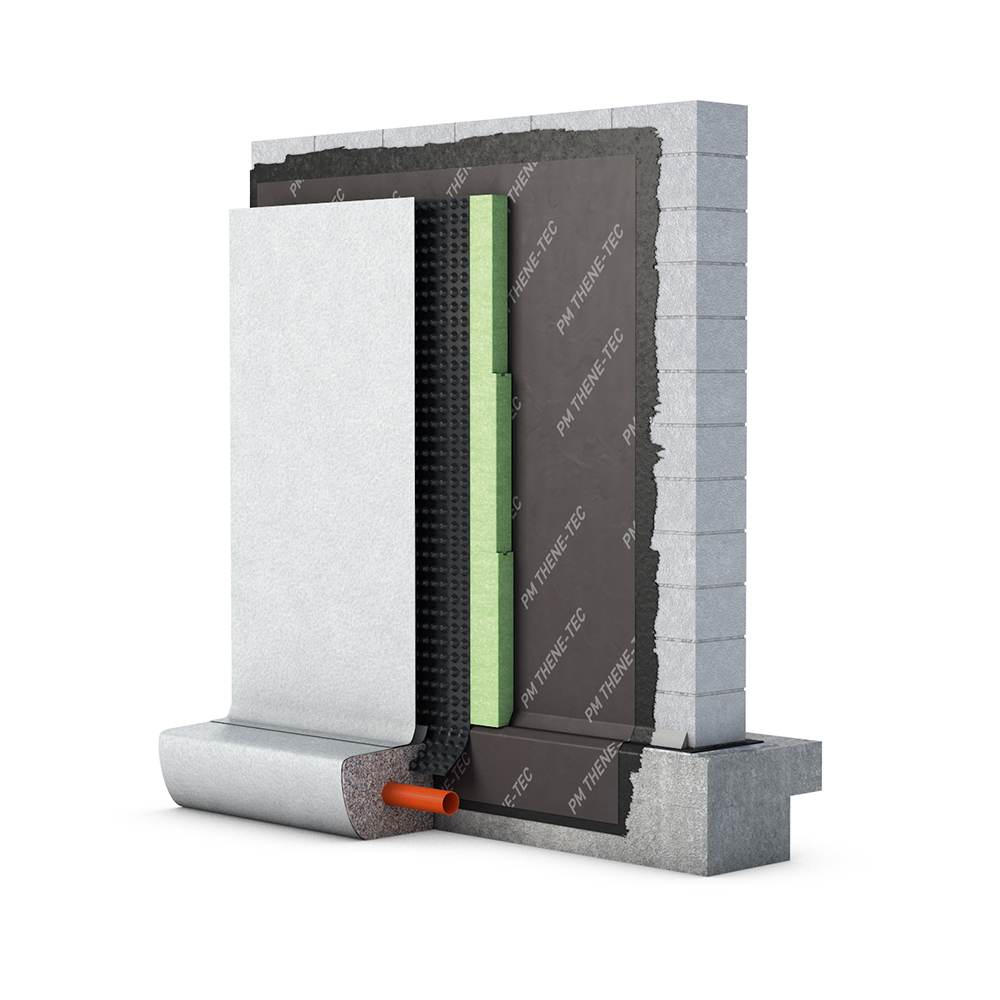

Cold self-adhesive bitumen membranes are used to waterproof ground-contacting basement walls and floor slabs against soil moisture and non-blocking seepage water, and meet the requirements for the standard-compliant waterproofing of buildings according to DIN 18533 for water exposure class W 1.1-E (soil moisture and water not under pressure) and W 1.2-E. (water not under pressure, for walls in contact with the ground and floor slabs for poorly drained soil with drainage).

The waterproofing membrane also has a sealing function against moisture rising by capillary action, and as a vapor barrier under screeds.

Cold self-adhesive membranes
Damp proof course
Single wall

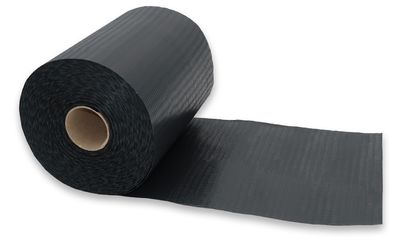

PM LDPE MAUERWERKSPERRE (DAMP-PROOF COURSE)

PM LDPE MAUERWERKSSPERRE is a single-layer 0.35 mm thick bitumen-compatible damp-proof course for single-layer wall constructions.

Damp proof course
Cavity wall

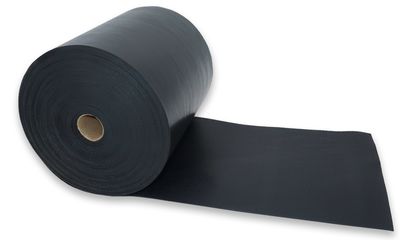

PM PVC MAUERWERKSSPERRE (DAMP-PROOF COURSE)

PM PVC MAUERWERKSSPERRE is a single-layer, 1.2 mm thick, DIN-compliant, elastic and embossed damp-proof course for single and cavity wall constructions.

Damp proof course
Cavity wall

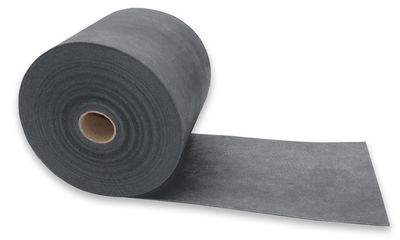

PM BituV MAUERWERKSSPERRE (DAMP-PROOF COURSE)

PM BituV MAUERWERKSSPERRE is a three-layer, 1.2 mm thick, DIN-compatible, fleece-laminated, bitumen-compatible damp-proof course for single and cavity wall constructions and as an L- or Z- shaped barrier in cavity wall structures.

Waterproofing membrane
Basement cavity

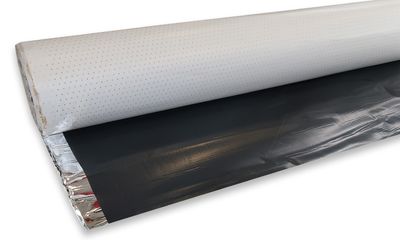

PM THENE-TEC

PM THENE-TEC is the combination of a cross-laminated Valeron film and a sealing adhesive layer made of special bitumen rubber.
